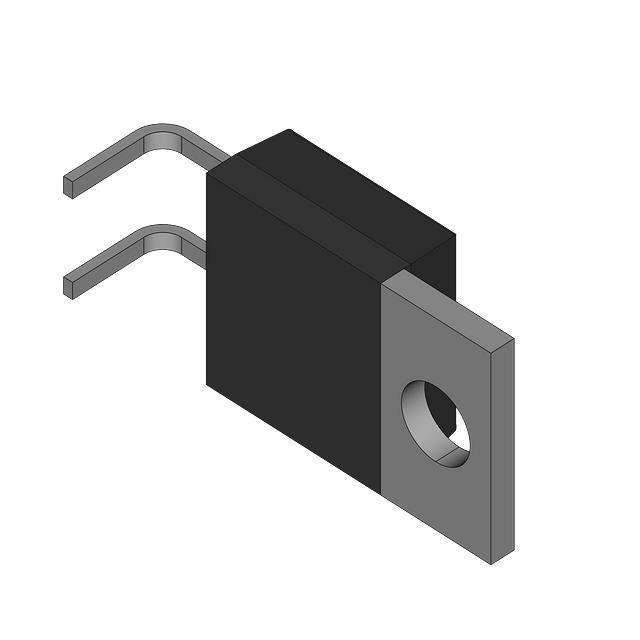

FFPF20UP20STU Real Image
Same model may have multiple batches, images only for reference.

FFPF20UP20STU

Part No FFPF20UP20STU
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 200V 20A TO220F
Datasheet
FFPF20UP20STU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 1.15V @ 20A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 45ns
Current - Reverse Leakage @ Vr 100μA @ 200V
Mounting Through Hole
Case / Package TO-220F-2L
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 067181-FFPF20UP20STU
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FFPF20UP20STU CAD Model

Description

The FFPF20UP20STU is a standard diode manufactured by Fairchild/ON Semiconductor.

  • Voltage DC Reverse (Vr) (Max): 200V
  • Average Rectified Current (Io): 20A
  • Forward Voltage (Vf) (Max) @ If: 1.15V @ 20A
  • Reverse Recovery Time (trr): 45ns
  • Case/Package: TO-220F-2L
  • Popularity: Medium
  • Category: Discrete Semiconductor Products
  • Status: Obsolete (EOL)
