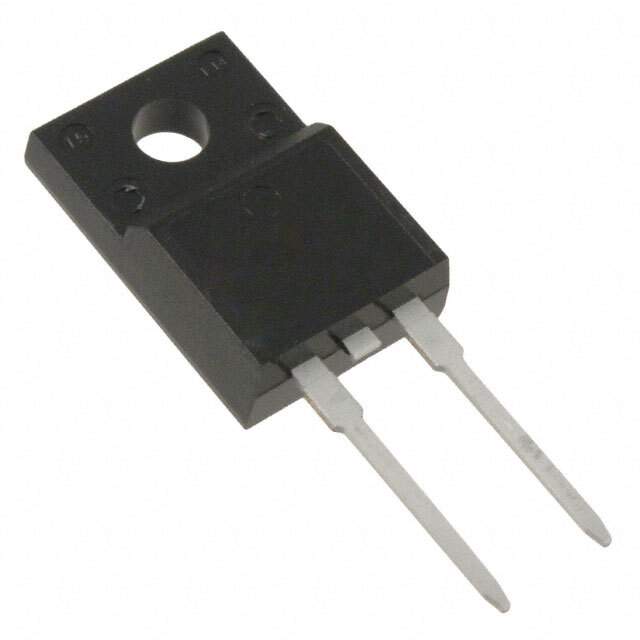

The FFPF14X150S is a hyperfast rectifier diode manufactured by Fairchild/ON Semiconductor. This diode is designed for applications requiring high-speed switching and efficient rectification with a forward current of 14A and a reverse voltage of 1500V. Its hyperfast recovery characteristics minimize switching losses, making it suitable for high-frequency power conversion circuits.

Applications

• Boost diodes in power factor correction (PFC) circuits
• High-voltage rectification in switching power supplies
• Freewheeling diodes in inverter circuits
• Snubber diodes in power switching circuits
• High-voltage DC-DC converters

Features

• Hyperfast recovery time
• High reverse voltage (1500V)
• Low forward voltage drop
• High surge current capability
• High operating junction temperature

Benefits

• Improved efficiency in high-frequency power conversion due to reduced switching losses.
• Enhanced reliability in high-voltage applications due to the high reverse voltage rating.
• Reduced power dissipation and improved thermal performance due to the low forward voltage drop.
• Robust performance under transient conditions due to the high surge current capability.
• Simplified thermal management due to the package design.

The FFPF14X150S is designed with a focus on high-voltage and high-speed performance. Its hyperfast recovery time ensures minimal reverse recovery charge, which significantly reduces switching losses in high-frequency circuits. The high reverse voltage rating provides a safety margin in demanding applications, enhancing the overall reliability of the system. The low forward voltage drop contributes to improved efficiency and reduced heat generation. The device is typically packaged in a TO-220 package, which facilitates efficient heat dissipation. This diode is ideal for applications where high efficiency and high reliability are critical requirements.
