Same model may have multiple batches, images only for reference.

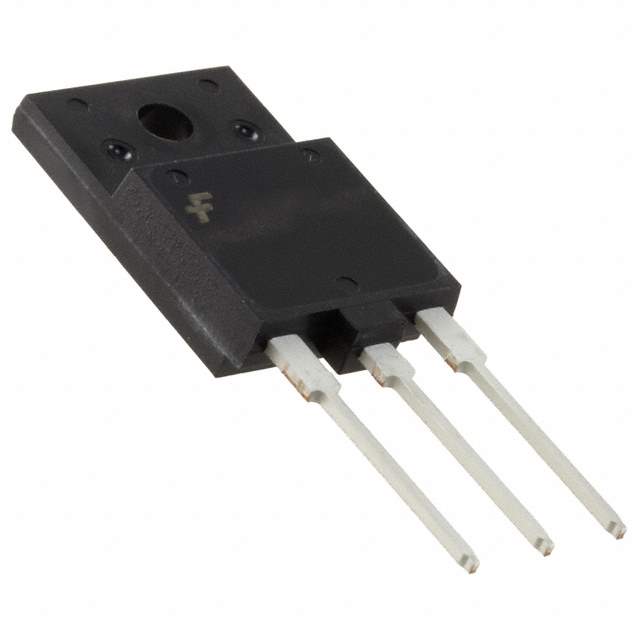

FFAF60UA60DN Real Image
Same model may have multiple batches, images only for reference.

FFAF60UA60DN

Part No FFAF60UA60DN
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 600V 30A TO3PF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 2.2V @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 90ns
Current - Reverse Leakage @ Vr 100μA @ 600V
Operating Temperature - Junction -65°C to 150°C
Mounting Through Hole
Case / Package TO-3PF
Win Source Part Number 1038574-FFAF60UA60DN
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 360
Ultra Librarian 3D Model Ultra Librarian FFAF60UA60DN CAD Model

Description

The Fairchild/ON Semiconductor standard diode type electronic component is a highly efficient and reliable device that is designed to provide efficient rectification function.

  • Operating Temperature: -65°C to 150°C
  • Maximum Reverse Voltage: 600V
  • Mounting Type: through-hole
  • Package: TO-3PF
  • Current Average Rectified: 30A
  • Recovery Speed: 200mA (Io)
  • Category: discrete semiconductor product
  • Supply and Demand Status: sufficient
  • Package Quantity: 360
