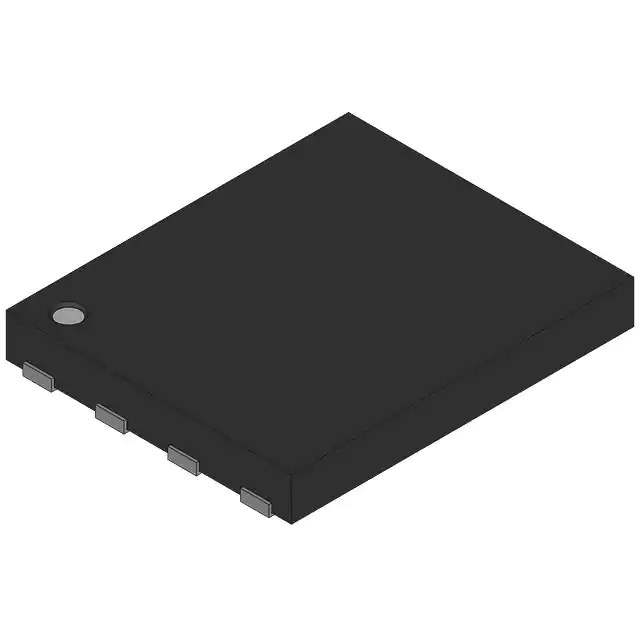

FDMS3624S

Part No FDMS3624S
Manufacturer Fairchild/ON Semiconductor
Catalog FETs - Arrays
Description SMALL SIGNAL FIELD-EFFECT TRANSI
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr Fairchild/ON Semiconductor
Series PowerTrench®
Package Bulk
Product Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Dual) Asymmetrical
Drain to Source Voltage (Vdss) 25V
Current - Continuous Drain (Id) @ 25°C 17.5A (Ta), 30A (Tc), 30A (Ta), 60A (Tc)
Rds On (Max) @ Id, Vgs 1.8mOhm @ 30A, 10V, 5mOhm @ 17.5A, 10V
Vgs(th) (Max) @ Id 2V @ 250µA, 2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 26nC @ 10V, 59nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 1570pF @13V, 4045pF @ 13V
Power - Max 2.2W (Ta), 2.5W (Ta)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-PowerTDFN
Supplier Device Package 8-PQFN (5x6)
Base Product Number FDMS3624
Standard Package 1 pcs
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 919038-FDMS3624S
Ultra Librarian 3D Model Ultra Librarian FDMS3624S CAD Model

Description

The FDMS3624S is a PowerTrench® MOSFET designed for use in discrete semiconductor products and is an active product from Fairchild/ON Semiconductor.

  • Type: dual N-Channel MOSFET
  • Vdss: 25V
  • Id: 17.5A @ 25°C, 30A @ higher temperatures
  • Rds On: 1.8mOhm @ 30A and 10V, 5mOhm @ 17.5A and 10V
  • Vgs(th): 2V @ 250µA and 2.2V @ 1mA
  • Power Dissipation: 2.2W @ 25°C
  • Package: 8-PowerTDFN
  • Operating Temperature Range: -55°C to 150°C
