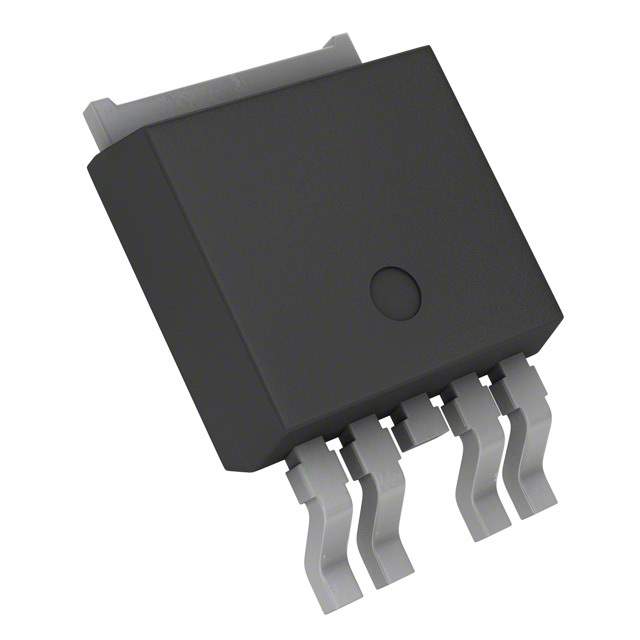

FDDS100H06_F085 Real Image
Same model may have multiple batches, images only for reference.

FDDS100H06_F085

Part No FDDS100H06_F085
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC SMART HIGH SIDE SWITCH DPAK-5
Datasheet
FDDS100H06_F085 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Not For New Designs
Switch Type General Purpose
Number of Outputs 1
Output Type N-Channel
Voltage - Load 5.5 V to 37 V
Supply Voltage - Operating Not Required
Current - Output (Max) 2.8A
Rds On (Typ) 80 mOhm
Input Type Non-Inverting
Features Auto Restart
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package TO-252-5
Win Source Part Number 1038133-FDDS100H06_F085
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian FDDS100H06_F085 CAD Model

Description

The FDDS100H06_F085 is an N-channel MOSFET from Fairchild/ON Semiconductor.

  • Channel Type: N-channel
  • Maximum Output Current: 2.8A
  • Voltage Load Range: 5.5V to 37V
  • Typical On-Resistance: 80 mOhm
  • Package: TO-252-5
  • Fault Protections: Current Limiting, Open Load Detect, Over Temperature, Over Voltage
  • Operating Temperature: -40°C to 150°C
