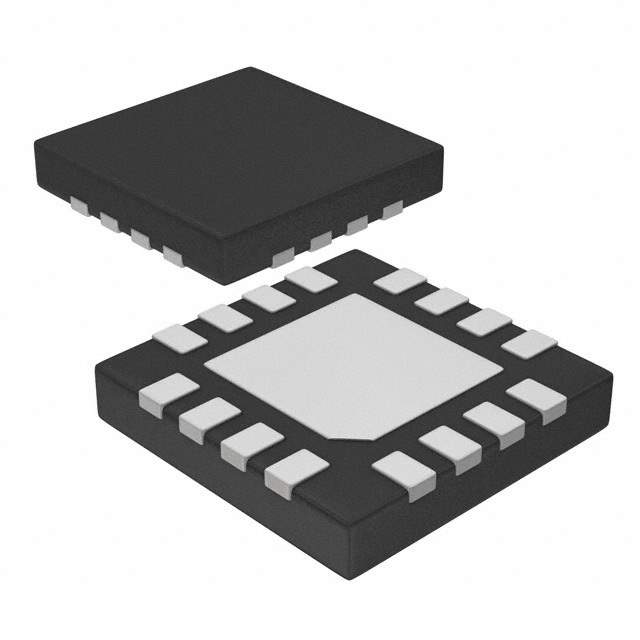

FAN5702UMP15X

Name: FAN5702UMP15X
Brand: Fairchild/ON Semiconductor
SKU: 590686
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FAN5702UMP15X
Manufacturer	Fairchild/ON Semiconductor
Catalog	PMIC - LED Drivers
Description	Configurable 180mA 6-LED Driver with I2C Control
Datasheet	FAN5702UMP15X Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits (ICs)
Manufacturer	Fairchild/ON Semiconductor
Packaging	Reel - TR
Type	DC DC Regulator
Topology	Switched Capacitor (Charge Pump)
Internal Switch(s)	Yes
Number of Outputs	6
Voltage Supply MIN	2.7V
Voltage Supply MAX	5.5V
Output Current per Channel	30mA
Frequency	1.2MHz
Dimming	I2C, PWM
Applications	Backlight
Operating Temperature Range	-40°C ~ 85°C (TA)
Mounting	SMD
Package	16-UFQFN Exposed Pad
Manufacturer Package	16-UMLP (3x3)
Win Source Part Number	1173374-FAN5702UMP15X
Manufacturer Homepage	www.fairchildsemi.com
Family Name	FAN5702
Introduction Date	December 01, 2009
ECCN	EAR99
Country of Origin	Thailand
Halogen Free	Compliant
Estimated EOL Date	2023
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	3k pcs
Ultra Librarian 3D Model	Ultra Librarian FAN5702UMP15X CAD Model

Alternative Products

Description

The FAN5702UMP15X is a DC-DC regulator from Fairchild/ON Semiconductor.

Supply and Demand: Balanced
RoHS State: Requested for verification
Application: Backlight applications
Ambient Temperature Range: -40°C to 85°C
Package: 16-UFQFN exposed pad
Topology: Switched capacitor
Outputs: Six
Dimming Support: I2C and PWM
Package: 16-UMLP (3x3)
