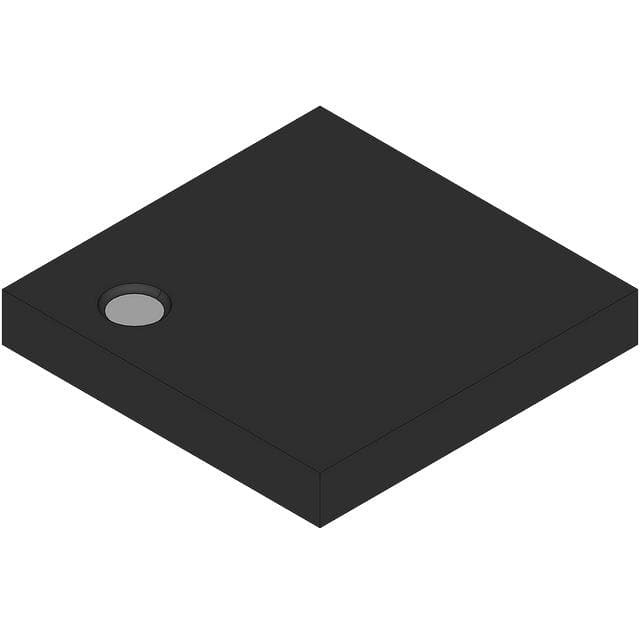

FAN5701UMP08X

Name: FAN5701UMP08X
Brand: Fairchild/ON Semiconductor
SKU: 1143782
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FAN5701UMP08X
Manufacturer	Fairchild/ON Semiconductor
Catalog	PMIC - LED Drivers
Description	IC LED DRVR RGLTR PWM 8MA 16UMLP / LED Driver IC 6 Output DC DC Regulator Switched Capacitor (Charge Pump) PWM Dimming 8mA 16-UMLP (3x3)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>PMIC - LED Drivers
Mfr	Fairchild Semiconductor
Package	Bulk
Product Status	Obsolete
Type	DC DC Regulator
Topology	Switched Capacitor (Charge Pump)
Internal Switch(s)	Yes
Number of Outputs	6
Voltage - Supply (Min)	2.7V
Voltage - Supply (Max)	5.5V
Current - Output / Channel	8mA
Frequency	1.2MHz
Dimming	PWM
Applications	Backlight
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting	SMD (SMT)
Package / Case	16-UFQFN Exposed Pad
Supplier Device Package	16-UMLP (3x3)
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	FAIFSCFAN5701UMP08X,2156-FAN5701UMP08X
Standard Package	3,000
Win Source Part Number	1143782-FAN5701UMP08X
Ultra Librarian 3D Model	Ultra Librarian FAN5701UMP08X CAD Model

Alternative Products

Description

The FAN5701UMP08X is a DC DC regulator type integrated circuit produced by Fairchild Semiconductor.

Application: Backlight
Frequency: 1.2MHz
Outputs: 6
Output Current: 8mA (per output)
Voltage Supply: 2.7V to 5.5V
Package: 16-UFQFN Exposed Pad
Packaging: Bulk
Standard Package: 3,000 units
Alternative Parts: None
