The DM74150 is a 16-to-1 data selector/multiplexer manufactured by Fairchild/ON Semiconductor. It's a digital logic integrated circuit that selects one of 16 data inputs based on a 4-bit binary address and routes the selected input to a single output. This makes it useful in a wide variety of data routing and control applications.

Applications

• Data routing and multiplexing
• Address decoding
• Logic function generation
• Parallel-to-serial conversion
• Digital control systems
• Memory addressing
• Instrumentation

Features

• 16-to-1 multiplexer: Selects one of 16 data inputs.
• 4-bit binary address: Determines which input is selected.
• Single output: Routes the selected input to a single output pin.
• Strobe input: Enables or disables the multiplexer function.
• TTL compatible: Operates with standard TTL logic levels.
• DIP package: Easy to prototype and breadboard with.

Benefits

• Simplified data routing: Reduces the complexity of data routing circuits.
• Reduced component count: Replaces multiple discrete logic gates.
• Increased system flexibility: Allows for dynamic selection of data sources.

Additional Details

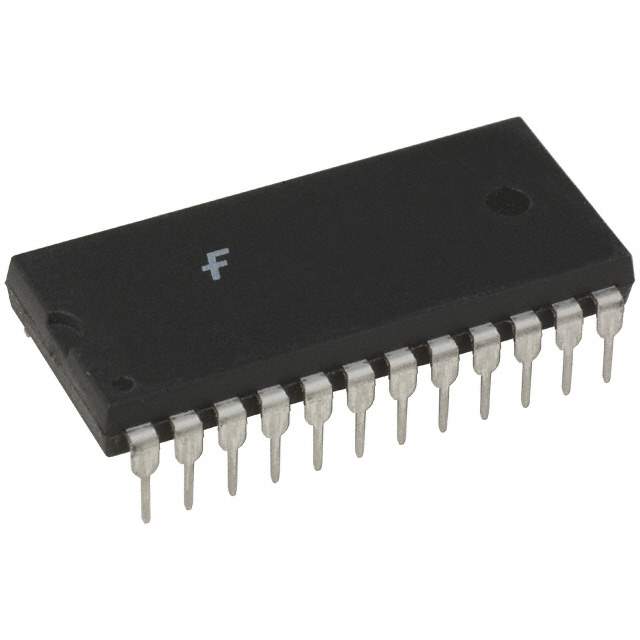

The DM74150 is housed in a 24-pin Dual In-line Package (DIP). The supply voltage is typically 5V. The propagation delay is typically in the nanosecond range. The device operates over a standard commercial temperature range. The four select inputs (A, B, C, D) determine which of the 16 data inputs (D0-D15) is selected. When the strobe input is high, the output is disabled (high). When the strobe input is low, the selected data input is passed to the output. The output is an inverted version of the selected input. The device can be used to implement complex logic functions by tying the data inputs to either VCC or ground. It is commonly used in address decoding applications to select specific memory locations or peripheral devices. It's a versatile logic building block for a variety of digital circuits.

By using the DM74150, designers can simplify their data routing and control circuits, reduce component count, and increase system flexibility. Its features and capabilities make it a valuable tool for a wide range of applications.
