Same model may have multiple batches, images only for reference.

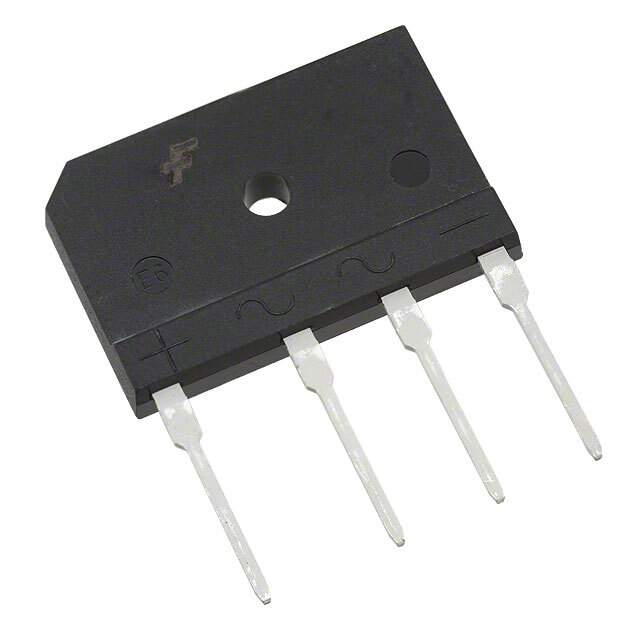

DFB2005 Real Image
Same model may have multiple batches, images only for reference.

DFB2005

Part No DFB2005
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 50V 20A TS-6P
Datasheet
DFB2005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 50V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 20A
Current - Reverse Leakage @ Vr 10μA @ 50V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TS-6P
Win Source Part Number 136994-DFB2005
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1,200
Ultra Librarian 3D Model Ultra Librarian DFB2005 CAD Model

Description

Description

The DFB2005 is a premium component designed to meet demands for high power processing and reliability. Its innovative architecture supports various electronics projects requiring precise power management.

Features and Benefits

  • High power handling capacity
  • Low thermal resistance
  • Compact and lightweight design

Applications

  • Telecommunication hardware
  • High-performance computing systems
  • Electric vehicle systems

Engineered for peak performance, the DFB2005 is the ideal choice for projects that prioritize efficiency and longevity.
