Same model may have multiple batches, images only for reference.

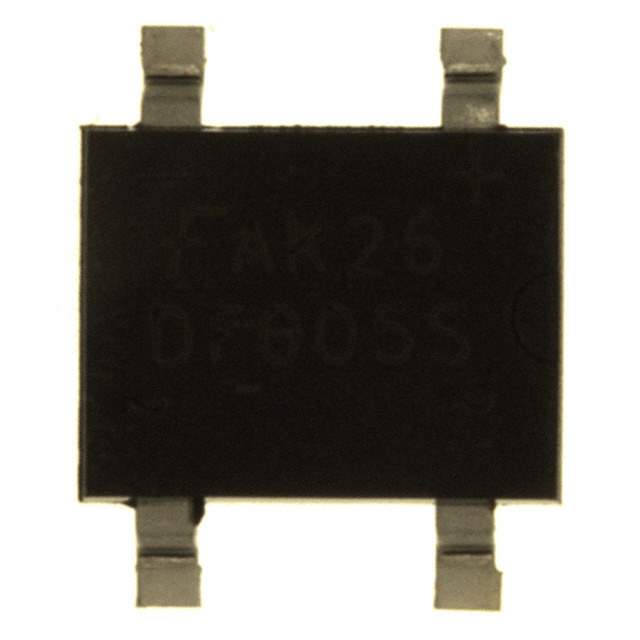

DF005S Real Image
Same model may have multiple batches, images only for reference.

DF005S

Part No DF005S
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description DIODE BRIDGE 50V 1.5A 4-SMD
Datasheet
DF005S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 50V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 5μA @ 50V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 4-SDIP
Win Source Part Number 050799-DF005S
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian DF005S CAD Model

Description

DF005S

DF005S is engineered for superior efficiency and reliability. This component is perfect for applications requiring consistent and dependable performance. It boasts a high current rating and compact design, ideal for modern electronic devices.

Features and Benefits

  • High thermal efficiency for optimal performance
  • Compact form factor allowing flexible design implementations
  • Reliable operation in diverse environmental settings

Applications

  • Power converters
  • Regulated power supplies
  • Audio amplifiers
