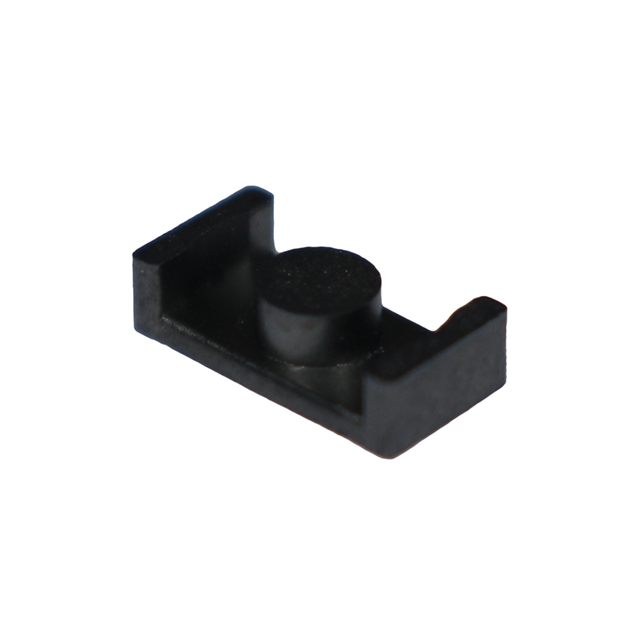

9498202002 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

9498202002

Part No 9498202002
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE E SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type E
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2400
Core Factor (ΣI/A) mm⁻¹ 60.0
Effective Length (le) mm 24.3
Effective Area (Ae) mm2 39.5
Minimum Core Cross Section (Amin) mm2 39.0
Effective Magnetic Volume (Ve) mm3 960.0
Finish Uncoated
Width 0.394\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528157-9498202002
Ultra Librarian 3D Model Ultra Librarian 9498202002 CAD Model
