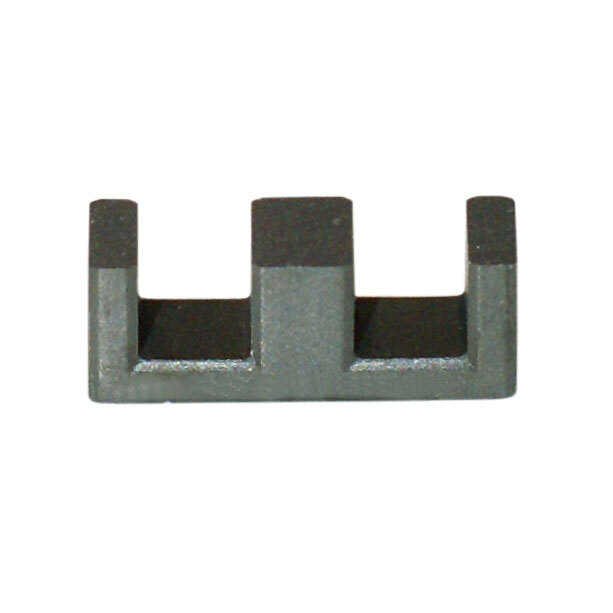

Same model may have multiple batches, images only for reference.

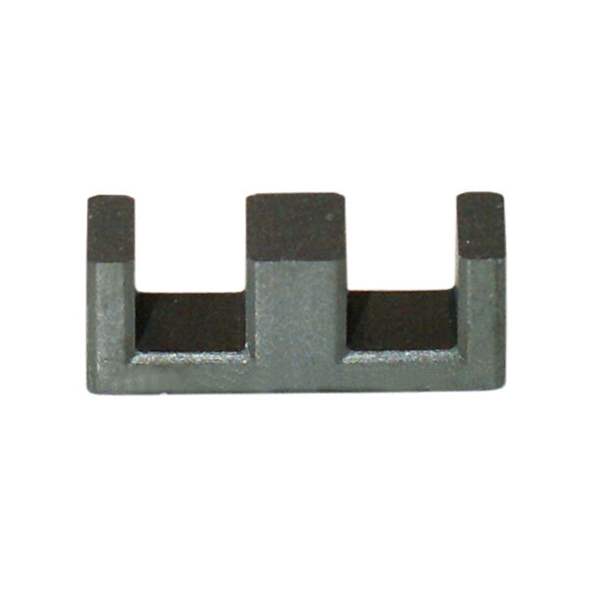

8995252521 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

8995252521

Part No 8995252521
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE EFD 95 SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type EFD
Material 95
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 3000
Core Factor (ΣI/A) mm⁻¹ 104.0
Effective Length (le) mm 58.8
Effective Area (Ae) mm2 58.0
Minimum Core Cross Section (Amin) mm2 55.0
Effective Magnetic Volume (Ve) mm3 3320.0
Finish Uncoated
Height 0.492" (12.50mm)
Length 0.984" (25.00mm)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528134-8995252521
Ultra Librarian 3D Model Ultra Librarian 8995252521 CAD Model

Description

N
