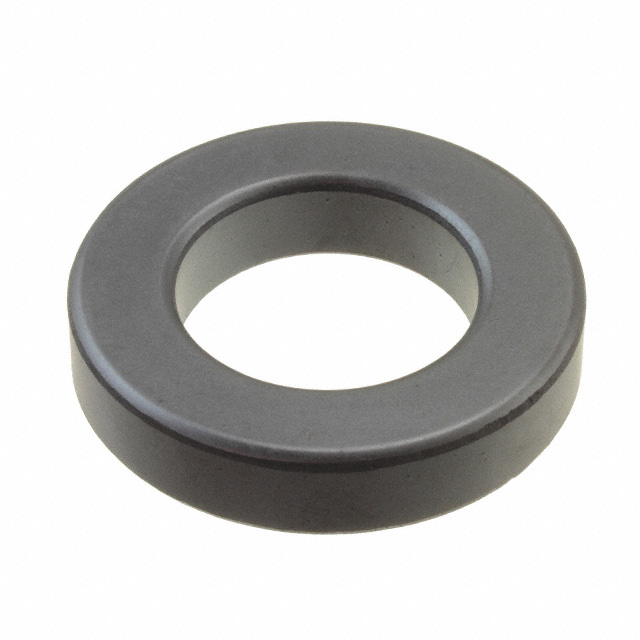

Same model may have multiple batches, images only for reference.
5678302021 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

5678302021

Part No 5678302021
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE PS 78 SET
Datasheet
5678302021 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type PS
Material 78
Diameter 1.181" (30.00mm)
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2300
Core Factor (ΣI/A) mm⁻¹ 35.6
Effective Length (le) mm 45.3
Effective Area (Ae) mm2 127.0
Effective Magnetic Volume (Ve) mm3 5750.0
Finish Uncoated
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528078-5678302021
Ultra Librarian 3D Model Ultra Librarian 5678302021 CAD Model

Description

N
