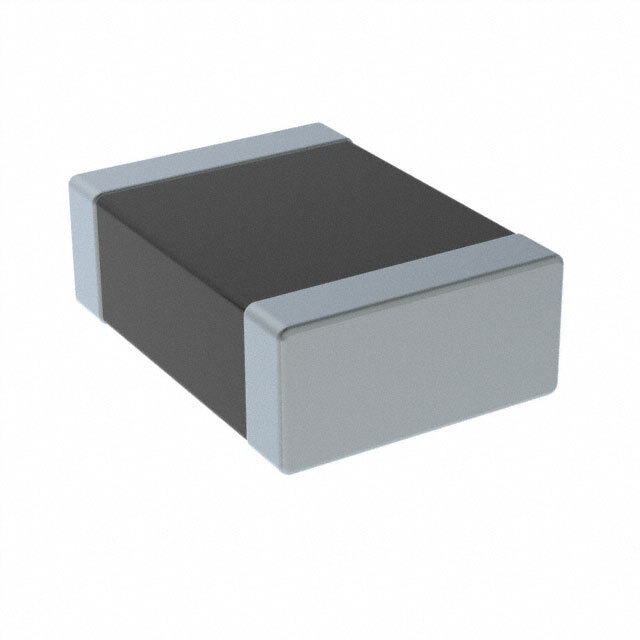

2744065447

Part No 2744065447
Manufacturer FAIR-RITE PRODUCTS
Catalog Common Mode Chokes
Description CMC 5A 2LN 255 OHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 255 Ohms @ 100 MHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 4.1mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.583" L x 0.276" W (14.80mm x 7.00mm)
Height (Max) 0.209" (5.30mm)
Case / Package Horizontal, 4 PC Pad
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1527429-2744065447
Ultra Librarian 3D Model Ultra Librarian 2744065447 CAD Model
