Same model may have multiple batches, images only for reference.

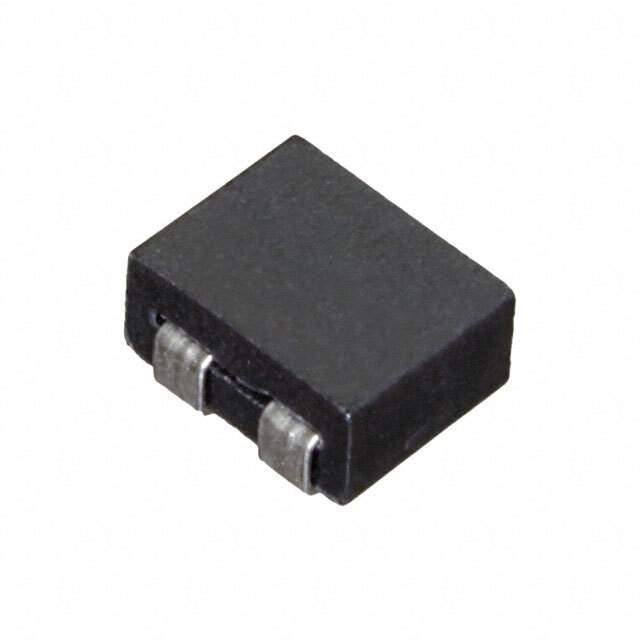

2744041447 Real Image
Same model may have multiple batches, images only for reference.

2744041447

Part No 2744041447
Manufacturer FAIR-RITE PRODUCTS
Catalog Common Mode Chokes
Description 44 COMMON MODE SM BEAD | CMC 5A 2LN 33 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Fair-Rite Products Corp.
Packaging Reel
Filter Type Signal Line
Number of Lines 2
Impedance at Frequency 33 Ohms at 100MHz
Current Rating (Maximum) 5A
DC Resistance (DCR) (Maximum) 1.1mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Parts Dimension 0.220" L x 0.197" W (5.60mm x 5.00mm)
Height (Maximum) 0.120" (3.05mm)
Manufacturer Package Horizontal, 4 PC Pad
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123438-2744041447
Manufacturer Homepage www.fair-rite.com
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Defence, Military & Aerospace
Ultra Librarian 3D Model Ultra Librarian 2744041447 CAD Model

Description

The Fair-Rite Products Corp. Signal Line Filter is a high-performance electronic component that is used in defence, military, and aerospace applications.

  • Manufacturer: Fair-Rite Products Corp.
  • Maximum Current Rating: 5A
  • DC Resistance (DCR): 1.1mOhm
  • Height: 0.120" (3.05mm)
  • Package: Horizontal, 4 PC pad package
  • Impedance @ 100MHz: 33 Ohms
  • Applications: Signal line applications
  • Temperature Range: -55°C to 125°C
  • MSL Rating: MSL Level 1 (Unlimited)
  • Manufacturer Pack Quantity: 1
  • Popularity: Medium
