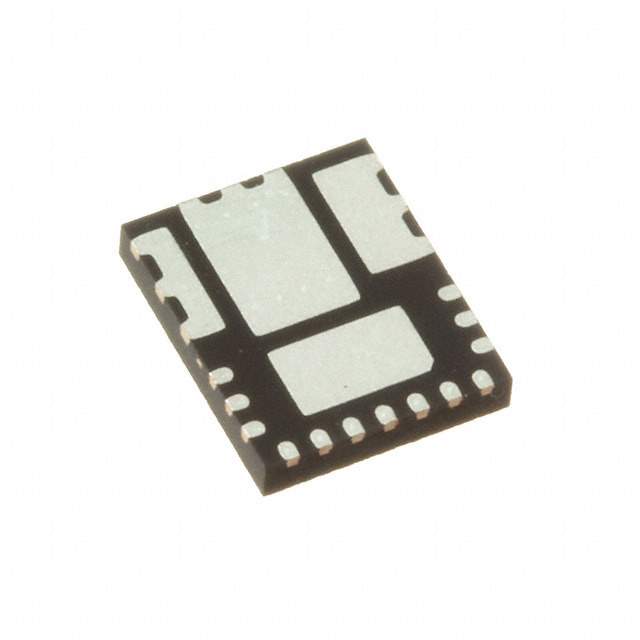

XR76120EL-F Real Image
Same model may have multiple batches, images only for reference.

XR76120EL-F

Part No XR76120EL-F
Manufacturer Exar Corporation
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description PowerBloxTM 15A and 20A Synchronous | IC REG BUCK ADJUSTABLE 20A 16QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer MaxLinear, Inc.
Packaging Tray
Function Step-Down
Topology Buck
Output Type Adjustable
Voltage - Input (Minimum) 4.5V
Voltage - Input (Maximum) 22V
Min/Fixed Output Voltage 0.6V
Maximum Output Voltage 22V
Output Current 20A
Switching Frequency 200kHz ~ 1MHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 16-PowerVQFN
Supplier Device Package 16-QFN (5x6)
Manufacturer Pack Quantity 490
MSL Level 2 (1 Year)
Win Source Part Number 1282303-XR76120EL-F
Manufacturer Homepage www.exar.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian XR76120EL-F CAD Model

Description

The XR76120EL-F is a step-down DC-DC converter manufactured by MaxLinear, Inc.

  • Function: DC-DC Converter
  • Manufacturer: MaxLinear, Inc.
  • Features: Synchronous Rectifier
  • Output Type: Adjustable
  • Topology: Buck
  • Maximum Output Voltage: 22V
  • Output Current: 20A
  • Temperature Range: -40°C to 125°C
  • Package: 16-QFN (5x6)
  • Switching Frequency: 200kHz to 1MHz
  • Voltage Input: 4.5V to 22V
  • Minimum/Fixed Output Voltage: 0.6V
