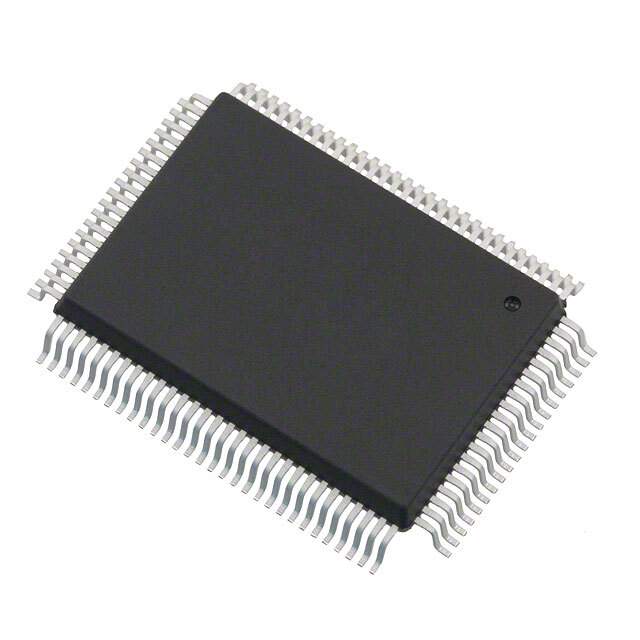

XR16C854CQ-F Real Image
Same model may have multiple batches, images only for reference.

XR16C854CQ-F

Part No XR16C854CQ-F
Manufacturer Exar Corporation
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description IC UART FIFO 128B QUAD 100QFP
Datasheet
XR16C854CQ-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Exar Corporation
Packaging Tray
Status Active
Features Internal Oscillator, Timer/Counter
Number of Channels 4, QUART
FIFO's 128 Byte
Protocol RS232, RS485
Data Rate (Max) 2Mbps
Supply Voltage - Operating 2.97 V to 5.5 V
With Auto Flow Control Yes
With IrDA Encoder/Decoder Yes
With False Start Bit Detection Yes
With Modem Control Yes
Mounting SMD (SMT)
Case / Package 100-QFP (14x20)
Win Source Part Number 416451-XR16C854CQ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XR16C854CQ-F CAD Model

Description

The XR16C854CQ by Exar Corporation is a quad UART integrated circuit designed for use in modern electronic devices.

  • Features: Internal oscillator and timer/counter
  • Ideal choice for: Applications that require precise timing
  • Protocols: RS232 and RS485
  • Channels: Four channels
  • QUART Data Rate: Up to 2Mbps
  • Data Transfer: High-speed
  • FIFO's: 128 Byte FIFO's
  • Control: Auto flow control
  • IrDA Encoder/Decoder: Yes
  • Modem Control: Yes
  • Package: 100-QFP (14x20)
  • Supply Voltage: 2.97 V to 5.5 V
