Same model may have multiple batches, images only for reference.

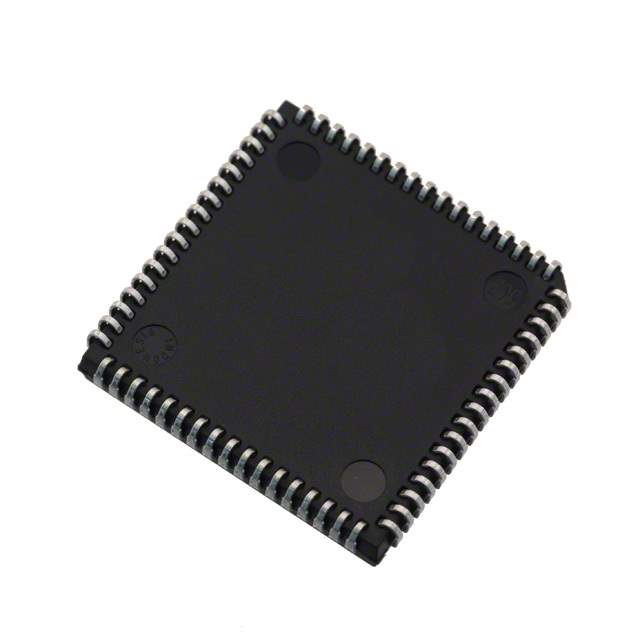

ST16C452CJ68-F Real Image
Same model may have multiple batches, images only for reference.

ST16C452CJ68-F

Part No ST16C452CJ68-F
Manufacturer Exar Corporation
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description IC UART W/PAR PORT DUAL 68PLCC / UART 2-CH 1byte FIFO 3.3V/5V 68-Pin PLCC
Datasheet
ST16C452CJ68-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Exar Corporation
Packaging Tube
Features Configurable GPIO, Printer Port, Timer/Counter
Number of Channels 2, DUART
FIFO's 1 Byte
Data Rate (Maximum) 1.5Mbps
Operating Supply Voltage 2.97 V ~ 5.5 V
With False Start Bit Detection Yes
With Modem Control Yes
Mounting SMD
Package 68-LCC (J-Lead)
Manufacturer Package 68-PLCC (24.23x24.23)
Win Source Part Number 795503-ST16C452CJ68-F
Popularity Medium
Supply and Demand Status Limited
Family Name ST16C452
Introduction Date February 06, 1998
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ST16C452CJ68-F CAD Model

Description

The ST16C452CJ68-F from Exar Corporation is an obsolete/end of life electronic component.

  • Win Source Part Number: 795503-ST16C452CJ68-F
  • Package: 68-PLCC (24.23x24.23)
  • Data Rate: 1.5Mbps
  • Features: Configurable GPIO, Printer Port, Timer/Counter
  • Halogen Free: Yes
