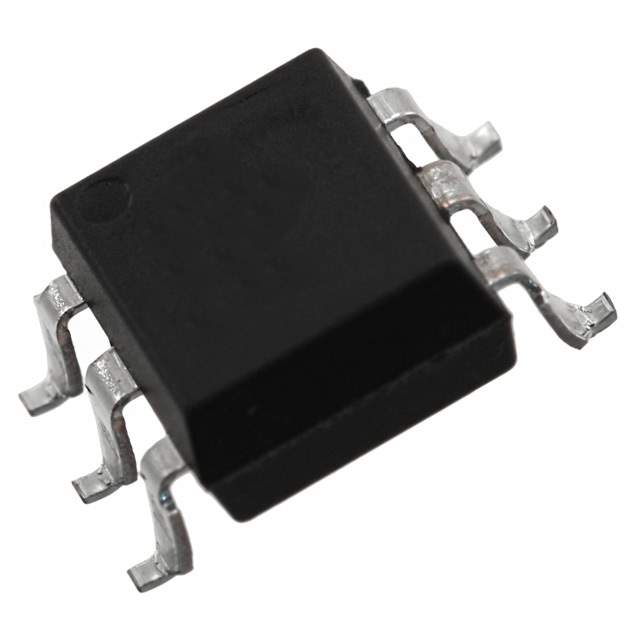

The TIL111S1(TA) is a single-channel optocoupler featuring a gallium arsenide infrared emitting diode (IRED) optically coupled to a silicon NPN phototransistor. This device is designed for electrical isolation between input and output circuits, providing protection against high voltage transients and noise. It is widely used in industrial control systems, telecommunications equipment, and consumer electronics.

Applications:

• Industrial control systems: Isolates sensitive control circuits from high-voltage power circuits.
• Telecommunications equipment: Provides isolation in telephone line interfaces and data transmission systems.
• Consumer electronics: Isolates control circuits in power supplies and motor control applications.
• Microcontroller input isolation: Protects microcontroller inputs from voltage spikes and noise.
• Power supply feedback control: Isolates feedback signals in switching power supplies.

Features:

• High isolation voltage: Provides electrical isolation up to 5kV between input and output.
• High current transfer ratio (CTR): Enables efficient signal transfer from input to output.
• Low saturation voltage: Minimizes power dissipation in the output transistor.
• Fast switching speed: Allows for high-speed data transmission.
• Compact package: Suitable for space-constrained applications.

Benefits:

• Improved system safety: Protects users and equipment from high-voltage hazards.
• Enhanced noise immunity: Isolates sensitive circuits from noise and interference.
• Simplified circuit design: Reduces the need for complex isolation techniques.
• Reliable signal transfer: High CTR ensures efficient signal transmission.
• Versatile application: Suitable for a wide range of isolation applications.

Additional Details:

The TIL111S1(TA) features a forward voltage of 1.25V (typical) for the input diode and a collector-emitter voltage of 30V for the output transistor. The operating temperature ranges from -55°C to +100°C. This optocoupler offers excellent linearity and stability, ensuring consistent performance over a wide range of operating conditions. Its compact package facilitates high-density PCB designs. The TIL111S1(TA) is commonly used in motor control circuits, power supplies, and communication interfaces. The device is designed to meet industry safety standards for electrical isolation. It is a reliable and cost-effective solution for isolating sensitive electronic circuits.
