Same model may have multiple batches, images only for reference.

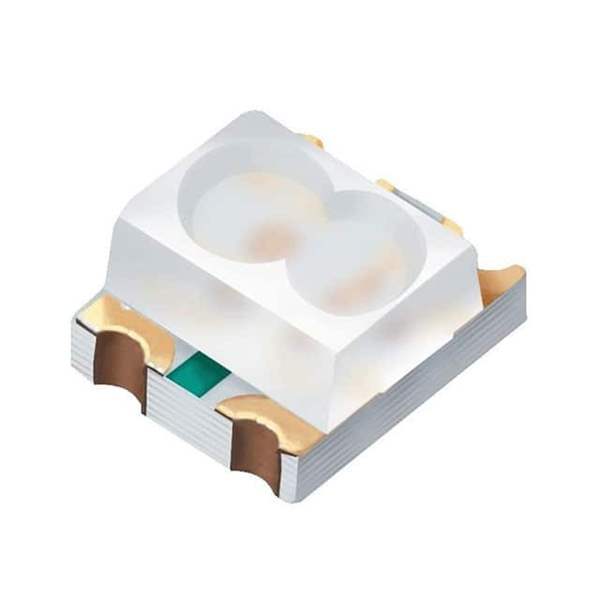

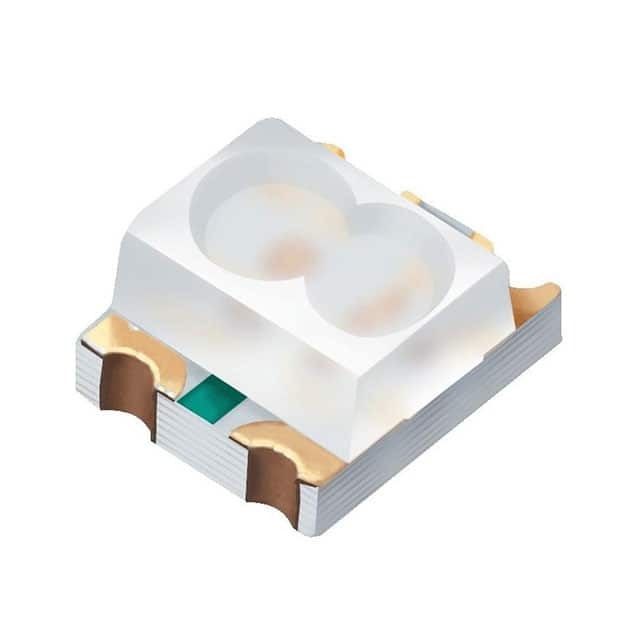

11-22/R8G6C-A30/2T

Name: 11-22/R8G6C-A30/2T
Brand: Everlight Electronics Co Ltd
SKU: 846514
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	11-22/R8G6C-A30/2T
Manufacturer	Everlight Electronics Co Ltd
Catalog	LED Indication - Discrete
Description	LED / Red, Yellow-Green 639nm Red, 573nm Yellow-Green LED Indication - Discrete 2V Red, 2V Yellow-Green 4-SMD, No Lead
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics - LED Indication - Discrete
Mfr	Everlight Electronics Co Ltd
Package	Tape & Reel
Product Status	Active
Color	Red, Yellow-Green
Configuration	Independent
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	315mcd Red, 126mcd Yellow-Green
Lens Style	Round with Domed Top
Lens Size	0.45mm Dia
Voltage - Forward (Vf) (Typ)	2V Red, 2V Yellow-Green
Current - Test	25mA Red, 25mA Yellow-Green
Viewing Angle	60°
Mounting Type	Surface Mount
Wavelength - Dominant	639nm Red, 573nm Yellow-Green
Wavelength - Peak	650nm Red, 575nm Yellow-Green
Package / Case	4-SMD, No Lead
Supplier Device Package	SMD
Size / Dimension	3.00mm L x 2.50mm W
Height (Max)	1.60mm
Standard Package	2,000 pcs
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	846514-11-22/R8G6C-A30/2T
Ultra Librarian 3D Model	Ultra Librarian 11-22/R8G6C-A30/2T CAD Model

Alternative Products

Description

The 846514-11-22/R8G6C-A30/2T is a surface mount LED indication component in the Optoelectronics category.

Colors: Red and Yellow-Green
Viewing Angle: 60 degrees
Lens Color: Colorless, Transparent
Millicandela Rating (Red): 315mcd
Millicandela Rating (Yellow-Green): 126mcd
Forward Voltage (Red): 2V @ 25mA
Forward Voltage (Yellow-Green): 2V @ 25mA
Dominant Wavelength (Red): 639nm
Dominant Wavelength (Yellow-Green): 573nm
Peak Wavelength (Red): 650nm
Peak Wavelength (Yellow-Green): 575nm
Package: 4-SMD, No Lead
Height: 1.60mm
Supplier: Everlight Electronics Co Ltd
Product Status: Active
Moisture Sensitivity Level: 3
