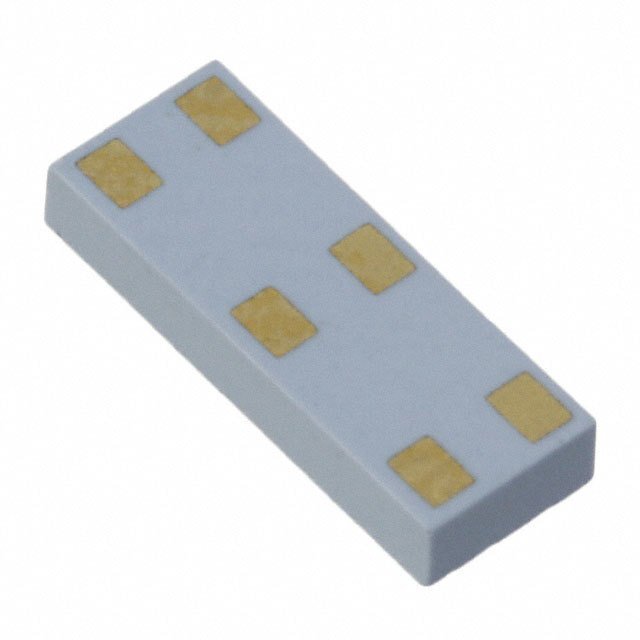

Same model may have multiple batches, images only for reference.
M830310 Ethertronics
Same model may have multiple batches, images only for reference.

M830310

Part No M830310
Manufacturer Ethertronics
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD / Savvi Embedded Bluetooth Antennas 2.4 - 2.5 GHz
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Ethertronics/AVX
Packaging Reel
Part Status Obsolete (End Of Life)
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 2
Gain 1.39dBi
Power - Max 500mW
Termination Solder
Mounting Style SMD
Height (Maximum) 0.051" (1.30mm)
Applications Bluetooth, Wi-Fi, WLAN, Zigbee
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804369-M830310
Ultra Librarian 3D Model Ultra Librarian M830310 CAD Model

Description

The Ethertronics/AVX 804369-M830310 is a chip antenna.

  • Applications: Bluetooth, Wi-Fi, WLAN, Zigbee
  • Power: 500mW
  • Frequency Range: 2.4GHz ~ 2.5GHz
  • Return Loss: -
  • Frequency Group: UHF (2GHz ~ 3GHz)
  • Frequency (Center/Band): 2.4GHz
  • Gain: 1.39dBi
  • VSWR: 2
  • Height (Maximum): 0.051" (1.30mm)
  • Packaging: SMD
  • Lifecycle Status: Obsolete (End of Life)
  • Manufacturer Pack Quantity: 1,000
