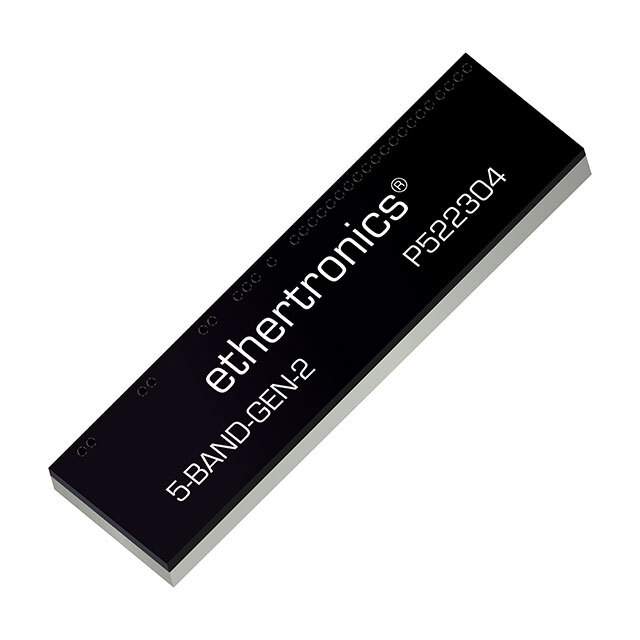

P522304 Real Image
Same model may have multiple batches, images only for reference.

P522304

Part No P522304
Manufacturer Ethertronics/AVX
Catalog RF Antennas
Description RF ANT 850MHZ/900MHZ CHIP SLD / 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz CDMA, DCS, GSM, PCS, UMTS, WCDMA Chip RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz 1.4dBi, 1.2dBi, 1.8dBi, 1.1dBi, 2.5dBi Solder Surface Mount
Datasheet
P522304 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Ethertronics/AVX
Series Prestta™
Package Tape & Reel
RF Family/Standard Cellular
Frequency Group Wide Band
Frequency (Center/Band) 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type Chip
Number of Bands 5
VSWR 2.5
Gain 1.4dBi, 1.2dBi, 1.8dBi, 1.1dBi, 2.5dBi
Power - Max 2 W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.126" (3.20mm)
Applications CDMA, DCS, GSM, PCS, UMTS, WCDMA
MSL Level 1 (Unlimited)
ECCN 3A991A2
HTSUS 8529.10.9100
Other Names 939-1022-1,Q7924910BB,939-1022-2,VIS-939-1022-2,Q7924910D,939-1022-6
Standard Package 1,120
Win Source Part Number 990922-P522304
Ultra Librarian 3D Model Ultra Librarian P522304 CAD Model

Description

The 990922-P522304 RF Antenna is a high-quality chip antenna used for CDMA, DCS, GSM, PCS, UMTS, and WCDMA applications.

  • Applications: CDMA, DCS, GSM, PCS, UMTS, and WCDMA
  • Frequency Range: 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
  • Maximum Power: 2 W
  • Gain: 1.4dBi, 1.2dBi, 1.8dBi, 1.1dBi, 2.5dBi
  • VSWR: 2.5
  • Termination: solder
  • Packaging: tape and reel
  • Antenna Type: chip
  • Bands: five
  • Height: 0.126" (3.20mm)
  • Standard Package: 1,120
  • ECCN: 3A991A2 compliant
