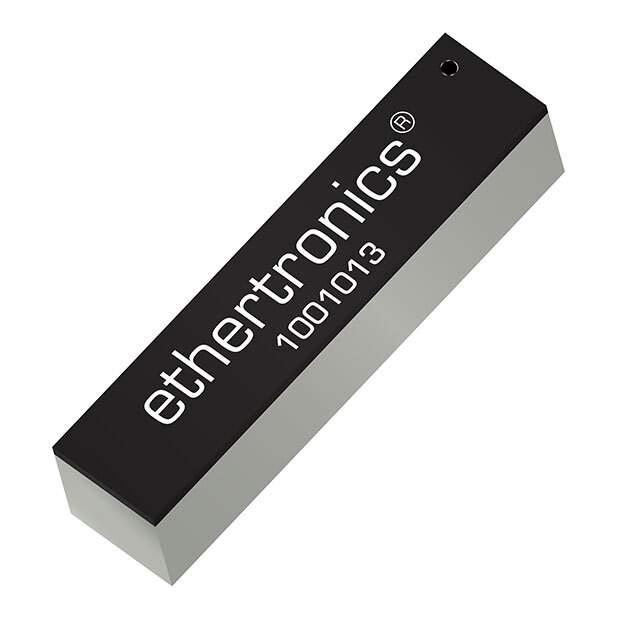

1001013 Real Image
Same model may have multiple batches, images only for reference.

1001013

Part No 1001013
Manufacturer Ethertronics/AVX
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD
Datasheet
1001013 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Ethertronics/AVX
Series Prestta™
Package Tape & Reel
Product Status Active
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 1.09
Gain 1.2dBi
Power - Max 2 W
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.130" (3.30mm)
Applications Bluetooth, Wi-Fi, WLAN, Zigbee™
Standard Package 2,250 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8517.71.0000
Win Source Part Number 849090-1001013
Ultra Librarian 3D Model Ultra Librarian 1001013 CAD Model

Description

The 849090-1001013 is a Prestta™ RF antenna manufactured by Ethertronics/AVX.

  • Category: RF and Wireless - RF Antennas
  • Applications: Bluetooth, Wi-Fi, WLAN, Zigbee™
  • Package: Tape and Reel
  • Maximum Power: 2W
  • Frequency Range: 2.4GHz to 2.5GHz
  • Height: 0.130 inches
  • Frequency Group: UHF (2GHz to 3GHz)
  • Band: Single Band
  • VSWR: 1.09
  • Gain: 1.2dBi
  • Device Compatibility: 802.15.4, Bluetooth, Wi-Fi
  • Mounting: Surface Mountable
  • Compliance: ECCN
  • Status: Active
