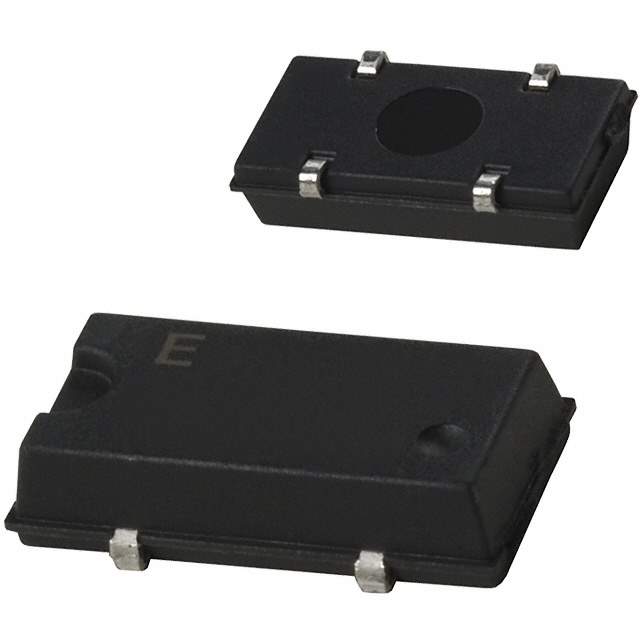

SG-636PCE 10.0000MC0:ROHS Real Image
Same model may have multiple batches, images only for reference.

SG-636PCE 10.0000MC0:ROHS

Part No SG-636PCE 10.0000MC0:ROHS
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog Oscillators
Description OSC XO 10.000MHZ CMOS SMD
Datasheet
SG-636PCE 10.0000MC0:ROHS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer EPSON
Packaging Reel - TR
Status Active
Type XO (Standard)
Frequency 10MHz
Purpose Enable/Disable
Output CMOS
Supply Voltage - Operating 3.3V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C to 70°C
Current - Supply (Max) 9mA
Mounting SMD (SMT)
Dimension 0.413" L x 0.197" W (10.50mm x 5.00mm)
Height - Seated (Max) 0.106" (2.70mm)
Current - Supply (Disable) (Max) 5mA
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 319704-SG-636PCE 10.0000MC0:ROHS
Ultra Librarian 3D Model Ultra Librarian SG-636PCE 10.0000MC0:ROHS CAD Model

Description

The EPSON XO (Standard) is an active electronic component used to enable/disable.

  • Popularity: This product has a medium popularity with a limited supply and demand status.
  • Package: The product is packaged in Reel-TR and has a height of 0.106" (2.70mm) when seated.
  • Mounting Type: The mounting type of this product is SMD (SMT), and the frequency of this product is 10MHz.
  • Output: The output of this product is CMOS, and the frequency stability is ±100ppm.
  • Current Supply: The maximum current supply of this product is 9mA, and the maximum current supply (disable) is 5mA.
  • Operating Temperature: The operating temperature range of this product is -20°C to 70°C.
  • Dimension: The dimension of this product is 0.413" L x 0.197" W (10.50mm x 5.00mm), and the purpose of this product is enable/disable.
  • Operating Voltage: The operating supply voltage of this product is 3.3V.
