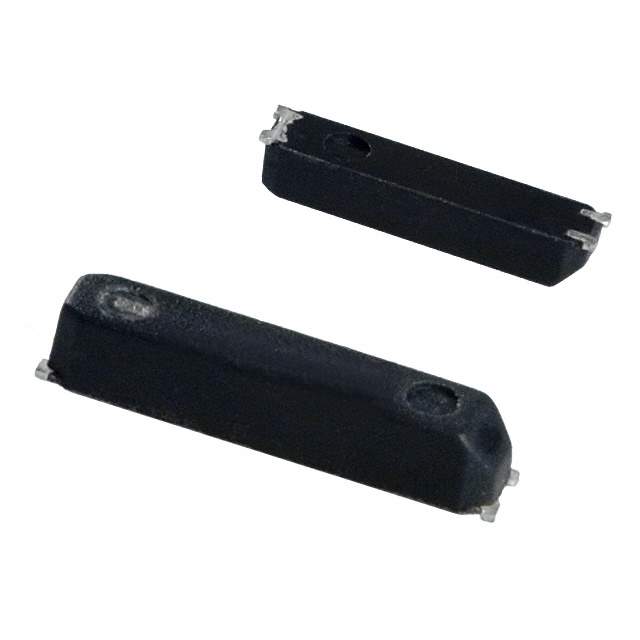

MC-146 32.7680KA-AC0: ROHS Real Image
Same model may have multiple batches, images only for reference.

MC-146 32.7680KA-AC0: ROHS

Part No MC-146 32.7680KA-AC0: ROHS
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 9PF SMD / 32.768 kHz ±20ppm Crystal 9pF 65 kOhms 4-SMD, Flat Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Epson Electronics America Inc-Semiconductor Div
Series MC-146
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Stability -
Frequency Tolerance ±20ppm
Load Capacitance 9pF
ESR (Equivalent Series Resistance) 65 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, Flat Leads
Size / Dimension 0.264" L x 0.059" W (6.70mm x 1.50mm)
Height - Seated (Max) 0.055" (1.40mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0010
Standard Package 1,000 pcs
Win Source Part Number 1383232-MC-146 32.7680KA-AC0: ROHS
Ultra Librarian 3D Model Ultra Librarian MC-146 32.7680KA-AC0: ROHS CAD Model

Description

The MC-146 is a high-quality kHz crystal designed for various electronic applications. It is manufactured by Epson Electronics America Inc-Semiconductor Div

  • Size: 0.264" L x 0.059" W (6.70mm x 1.50mm)
  • Height: 0.055" (1.40mm)
  • Mounting: Surface mount
  • Package: 4-SMD, flat leads
  • Frequency: 32.768 kHz
  • ESR (Equivalent Series Resistance): 65 kOhms
  • Frequency Tolerance: ±20ppm
  • Mode: Fundamental
  • Load Capacitance: 9pF
  • Operating Temperature: -40°C to 85°C
