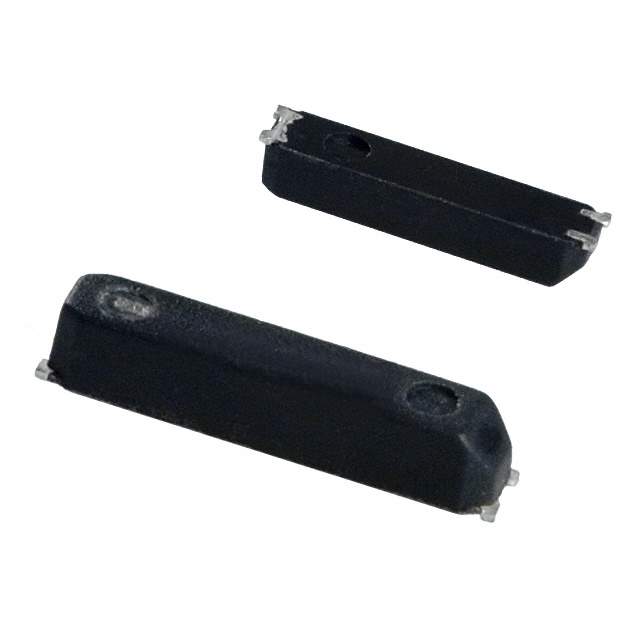

MC-146 32.7680KA-AG3: PURE SN Real Image
Same model may have multiple batches, images only for reference.

MC-146 32.7680KA-AG3: PURE SN

Part No MC-146 32.7680KA-AG3: PURE SN
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog Crystals
Description Crystal, Plastic Molded 32.768Khz, 6Pf, 20Ppm-40+85C, 8 X 3.8 X 2.5 Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
ESR (Equivalent Series Resistance) 65 kΩ
Frequency 32.768 kHz
Frequency Tolerance 0.002 %
Height 1.397 mm
Length 7.0104 mm
Load Capacitance 7 pF
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
RoHS Compliant
Width 1.524 mm
Categories Crystals
Manufacturer Epson Electronics America Inc-Semiconductor Div
Popularity Low
Supply and Demand Status Shortage
Win Source Part Number 1077038-MC-146 32.7680KA-AG3: PURE SN
Ultra Librarian 3D Model Ultra Librarian MC-146 32.7680KA-AG3: PURE SN CAD Model

Description

The Epson Electronics America Inc-Semiconductor Div crystal is a surface mount component with a frequency of 32.768 kHz and a frequency tolerance of 0.002%.

  • Mounting: surface mount
  • Frequency: 32.768 kHz
  • Frequency Tolerance: 0.002%
  • RoHS Compliant: RoHS compliant
  • Maximum Operating Temperature: 85 °C
  • Minimum Operating Temperature: -40 °C
  • Alternative parts: ABS25-32.768KHZ-6-T, FC-135 32.7680KA-AG5, FC-135 32.7680KA-AG3, AB38T-32.768KHZ, AB26T-32.768KHZ, and ECS-3X8X
