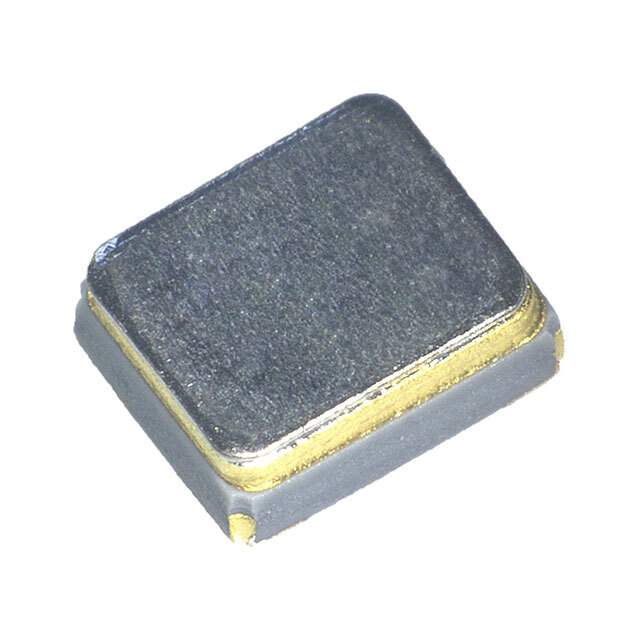

TG2016SMN 38.4000M-ECGNNM3 Real Image
Same model may have multiple batches, images only for reference.

TG2016SMN 38.4000M-ECGNNM3

Part No TG2016SMN 38.4000M-ECGNNM3
Manufacturer Epson Company
Catalog Oscillators
Description TCXO 1.8V +/-0.5PPM / 38.4 MHz TCXO Clipped Sine Wave Oscillator 1.8V 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series TG2016SMN
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 38.4 MHz
Output Clipped Sine Wave
Voltage - Supply 1.8V
Frequency Stability ±500ppb
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.8mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.029" (0.73mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SER4430DKR,SER4430TR,SER4430CT
Standard Package 250
Win Source Part Number 976023-TG2016SMN 38.4000M-ECGNNM3
Ultra Librarian 3D Model Ultra Librarian TG2016SMN 38.4000M-ECGNNM3 CAD Model

Description

The electronic component with Win Source Part Number 976023-TG2016SMN 38.4000M-ECGNNM3 is a TCXO oscillator belonging to the Crystals, Oscillators, Resonators category.

  • Win Source Part Number: 976023-TG2016SMN 38.4000M-ECGNNM3
  • Category: Crystals, Oscillators, Resonators
  • Series: TG2016SMN
  • Package: tape and reel
  • Seated Height: 0.029" (0.73mm)
  • Standard Package: 250 components
  • Mounting Type: SMD (SMT)
  • Frequency: 38.4 MHz
  • Output: clipped sine wave
  • Frequency Stability: ±500ppb
  • Current Supply: 1.8mA
  • Voltage Supply: 1.8V
  • Operating Temperature Range: -40°C to 85°C
