Same model may have multiple batches, images only for reference.

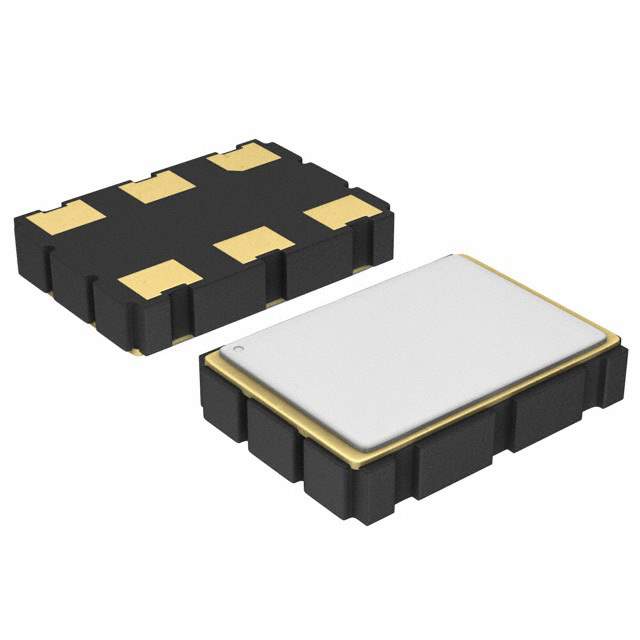

SG7050VAN 50.000000M-KJGBB Real Image
Same model may have multiple batches, images only for reference.

SG7050VAN 50.000000M-KJGBB

Part No SG7050VAN 50.000000M-KJGBB
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 50.0000MHZ LVDS SMD / 50 MHz XO (Standard) LVDS Oscillator 2.5V ~ 3.3V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG7050VAN
Package Bulk
Base Resonator Crystal
Type XO (Standard)
Frequency 50 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 2.5V ~ 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 30mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.063" (1.60mm)
Current - Supply (Disable) (Max) 20mA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names SG7050VAN50.000000M-KJGBB,SG7050VAN 50.000000M-KJGBB-ND
Standard Package 1
Win Source Part Number 995249-SG7050VAN 50.000000M-KJGBB
Ultra Librarian 3D Model Ultra Librarian SG7050VAN 50.000000M-KJGBB CAD Model

Description

The SG7050VAN 50.000000M-KJGBB oscillator is a product of EPSON.

  • Series: SG7050VAN
  • Category: Crystals, Oscillators, Resonators>Oscillators
  • Frequency: 50 MHz
  • Output: LVDS
  • Frequency Stability: ±50ppm
  • Maximum Supply Current: 30mA
  • Disable: Yes
  • Maximum Supply Current (Disable Mode): 20mA
  • Voltage Supply Range: 2.5V to 3.3V
  • Package: 6-SMD, No Lead
  • Temperature Range: -40°C to 85°C
