Same model may have multiple batches, images only for reference.

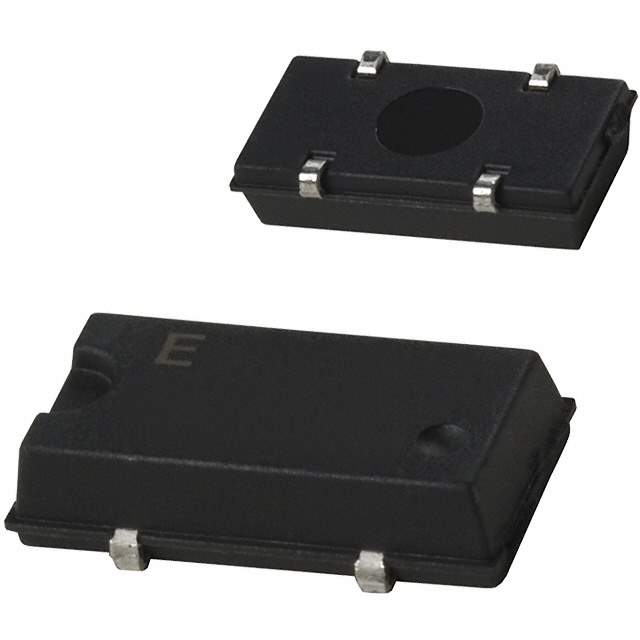

SG-636PCW 50.0000MC3: ROHS Real Image
Same model may have multiple batches, images only for reference.

SG-636PCW 50.0000MC3: ROHS

Part No SG-636PCW 50.0000MC3: ROHS
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 50.0000MHZ CMOS SMD / 50 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SOJ, 5.08mm pitch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG-636
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 50 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 28mA
Mounting SMD (SMT)
Package / Case 4-SOJ, 5.08mm pitch
Dimension 0.413" L x 0.197" W (10.50mm x 5.00mm)
Height - Seated (Max) 0.106" (2.70mm)
Current - Supply (Disable) (Max) 16mA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 250
Win Source Part Number 1092596-SG-636PCW 50.0000MC3: ROHS
Ultra Librarian 3D Model Ultra Librarian SG-636PCW 50.0000MC3: ROHS CAD Model

Description

This electronic component is a CMOS output XO oscillator with a frequency of 50 MHz.

  • Height: 0.106 inches
  • Package Size: 4-SOJ, 5.08mm pitch
  • Operating Temperature: -20°C to 70°C
  • Part Number: SG-636
  • Package: tape & reel package of 250
  • Current Supply: 28mA
  • Current Supply (disabled): 16mA
  • Voltage Supply: 3.3V
  • Product Status: obsolete
  • Alternative Parts: ASV-50.000MHZ-E-T, ECS-3963-500-AU-TR, ASV-48.000MHZ-E-T, 7C-48.000MBC-T, 7X-48.000MBC-T, and ECS-3963-480-AU-TRSG636PCW 50.0000MC3: ROHS
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Base Resonator: crystal
  • Absolute Pull Range (APR): not provided
  • HTSUS Code: 8542.39.0001
