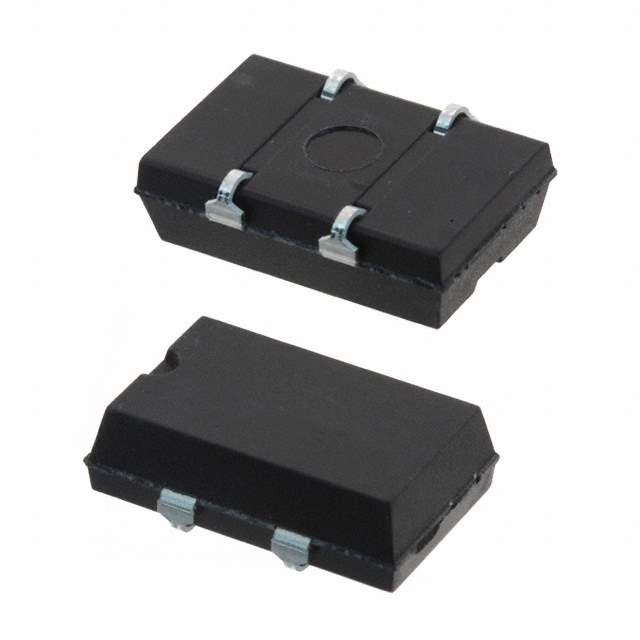

The SG-615PCG is a type of crystal oscillator with a frequency of 12 MHz.

• Function: enable/disable
• Output: CMOS and TTL
• Frequency Stability: ±100ppm
• Current - Supply (Max): 28mA
• Current - Supply (Disable) (Max): 16mA
• Voltage - Supply: 3.3V
• Package/Case: 4-SOJ, 5.08mm pitch
• Temperature Range - Operating: -20°C to 70°C
• Dimension: 0.551" L x 0.341" W (14.00mm x 8.65mm)
• Alternative Parts (Cross-Reference): ASFL1-12.000MHZ-L-T, ASV-12.000MHZ-E-T, ASE-12.000MHZ-ET, ECS-3953M-120-AU-TR, 7C-12.000MBC-T, and 7W-12.000MBC-T
• ECCN: EAR99
• HTSUS: 8542.39.0001
• Manufacturer: EPSON
• Product Status: obsolete
• Base Resonator: crystal
• Absolute Pull Range (APR): -
