Same model may have multiple batches, images only for reference.

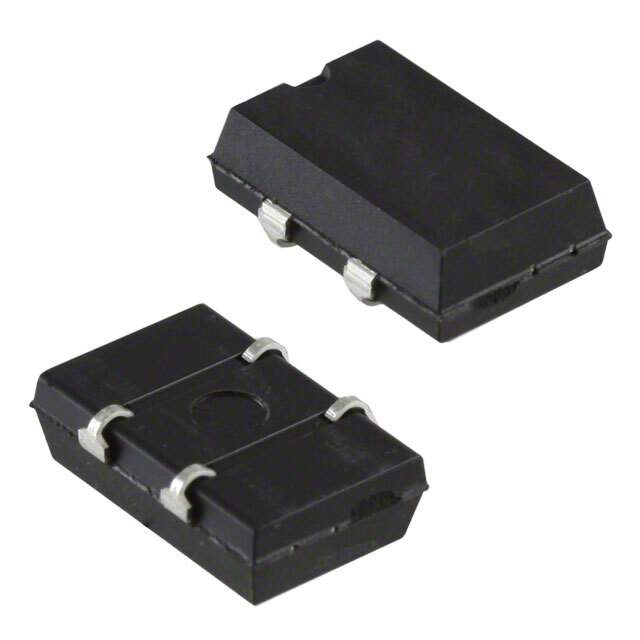

SG-615P 12.0000MC3: ROHS Real Image
Same model may have multiple batches, images only for reference.

SG-615P 12.0000MC3: ROHS

Part No SG-615P 12.0000MC3: ROHS
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 12.0000MHZ CMOS TTL / 12 MHz XO (Standard) CMOS, TTL Oscillator 5V Enable/Disable 4-SMD, J-Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG-615
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 12 MHz
Function Enable/Disable
Output CMOS, TTL
Voltage - Supply 5V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 23mA
Mounting SMD (SMT)
Package / Case 4-SMD, J-Lead
Dimension 0.551" L x 0.386" W (14.00mm x 9.80mm)
Height - Seated (Max) 0.185" (4.70mm)
Current - Supply (Disable) (Max) 23mA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names SER3988TR,SG-615P 12.0000MC3 ROHS,SER3988CT,SER3988DKR,824219,SG-615P12.0000MC3ROHS,Q33615011078812
Standard Package 250
Win Source Part Number 1092568-SG-615P 12.0000MC3: ROHS
Ultra Librarian 3D Model Ultra Librarian SG-615P 12.0000MC3: ROHS CAD Model

Description

The SG-615 is a series of XO (Standard) oscillators that are perfect for a wide range of applications.

  • Frequency: 12 MHz
  • Frequency Stability: ±100ppm
  • Current Supply: 23mA
  • Voltage Supply: 5V
