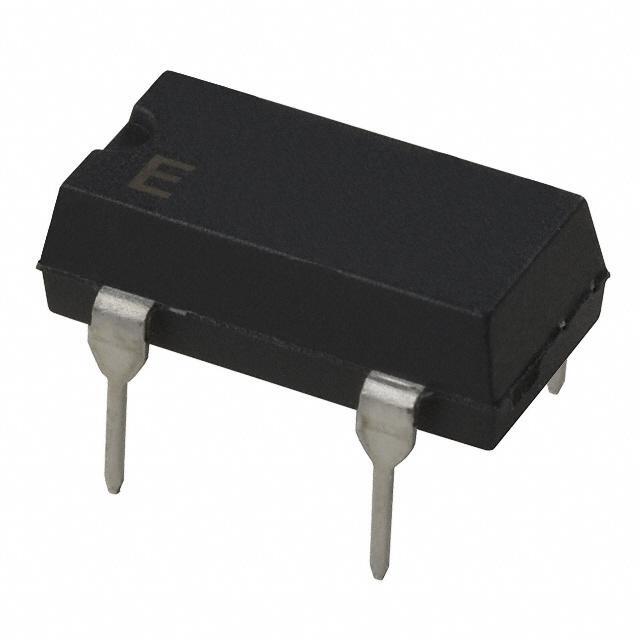

Same model may have multiple batches, images only for reference.
SG-531PH 48.0000MC Epson Company
Same model may have multiple batches, images only for reference.

SG-531PH 48.0000MC

Part No SG-531PH 48.0000MC
Manufacturer Epson Company
Catalog Oscillators
Description OSC XO 48.000MHZ CMOS PC PIN / Oscillator XO 48MHz ±100ppm 50pF CMOS 60% 5V 4-Pin PDIP Thru-Hole Bulk
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer EPSON
Series SG-531
Packaging Tube
Part Status Obsolete(EOL)
Type XO (Standard)
Frequency 48MHz
Function Enable/Disable
Output CMOS
Operating Supply Voltage 5V
Frequency Stability ±100ppm
Operating Temperature Range -20°C ~ 70°C
Maximum Supply Current 35mA
Mounting Style Through Hole
Package 8-DIP, 4 Leads (Half Size)
Dimension 0.539" L x 0.260" W (13.70mm x 6.60mm)
Height - Seated (Maximum) 0.209" (5.30mm)
Current - Supply (Disable) (Maximum) 20mA
Win Source Part Number 794062-SG-531PH 48.0000MC
Popularity Medium
Supply and Demand Status Limited
Introduction Date March 21, 2000
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SG-531PH 48.0000MC CAD Model

Description

The EPSON SG-531PH 48.0000MC is a through hole XO (standard) crystal oscillator.

  • Frequency: 48MHz
  • Frequency Stability: ±100ppm
  • Temperature Range: -20°C to 70°C
  • Maximum Supply Current: 35mA
  • Package: 8-DIP, 4 leads (half size)
  • Output: CMOS
  • Enable/Disable: Yes
  • Supply and Demand Status: Limited
