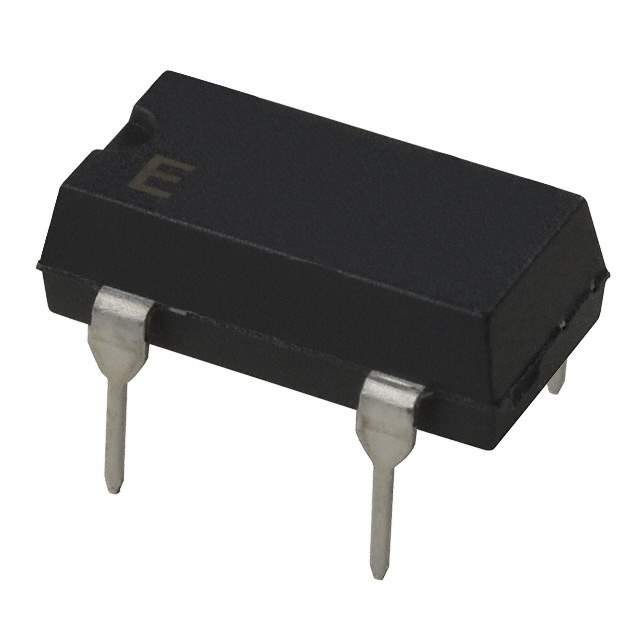

SG-531P 20.0000MC Real Image
Same model may have multiple batches, images only for reference.

SG-531P 20.0000MC

Part No SG-531P 20.0000MC
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 20.0000MHZ CMOS TTL / 20 MHz XO (Standard) CMOS, TTL Oscillator 5V Enable/Disable 8-DIP, 4 Leads (Half Size)
Datasheet
SG-531P 20.0000MC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr EPSON
Series SG-531
Package Tube
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 20 MHz
Function Enable/Disable
Output CMOS, TTL
Voltage - Supply 5V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 23mA
Mounting Type Through Hole
Package / Case 8-DIP, 4 Leads (Half Size)
Size / Dimension 0.539" L x 0.260" W (13.70mm x 6.60mm)
Height - Seated (Max) 0.209" (5.30mm)
Current - Supply (Disable) (Max) 12mA
Standard Package 35
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1351285-SG-531P 20.0000MC
Ultra Librarian 3D Model Ultra Librarian SG-531P 20.0000MC CAD Model

Description

The EPSON SG-531P 20.0000MC is an oscillator with a frequency of 20 MHz and a frequency stability of ±100ppm.

  • Type: XO (Standard)
  • Package: 35
  • Output: CMOS, TTL
  • Current Supply (Max): 23mA
  • Voltage Supply: 5V
  • Mounting Type: Through Hole
  • Temperature Range: -20°C to 70°C
  • Status: Obsolete
