Same model may have multiple batches, images only for reference.

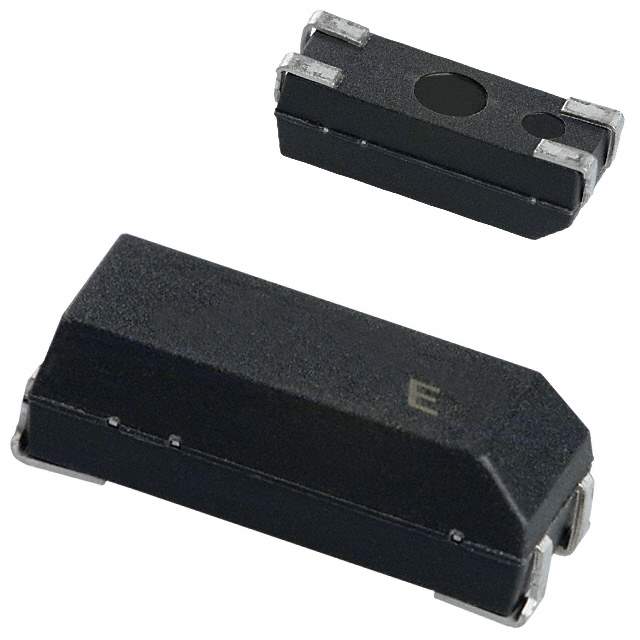

MA-506 4.0000M-D0:ROHS Real Image
Same model may have multiple batches, images only for reference.

MA-506 4.0000M-D0:ROHS

Part No MA-506 4.0000M-D0:ROHS
Manufacturer Epson Company
Catalog Crystals
Description CRYSTAL 4.0000MHZ 22PF SMD / 4 MHz ±50ppm Crystal 22pF 150 Ohms 4-SOJ, 3.30mm pitch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr EPSON
Series MA-506
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 4 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 22pF
ESR (Equivalent Series Resistance) 150 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SOJ, 3.30mm pitch
Size / Dimension 0.500" L x 0.200" W (12.70mm x 5.08mm)
Height - Seated (Max) 0.181" (4.60mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0030
Win Source Part Number 1337743-MA-506 4.0000M-D0:ROHS
Ultra Librarian 3D Model Ultra Librarian MA-506 4.0000M-D0:ROHS CAD Model

Description

The Epson MA-506 MHz Crystal is a high-quality electronic component that offers reliable frequency stability. The manufacturer is Epson, and the product is MA-506 MHz Crystal.

  • Frequency Tolerance: ±50ppm
  • Operating Mode: Fundamental
  • Load Capacitance: 22pF
  • Mounting: Surface Mount
  • Package: 4-SOJ
  • Pitch: 3.30mm
  • Temperature Range: -20°C to 70°C
  • ESR: 150 Ohms
  • Status: Obsolete
  • Standard Package: 1,000
