Same model may have multiple batches, images only for reference.

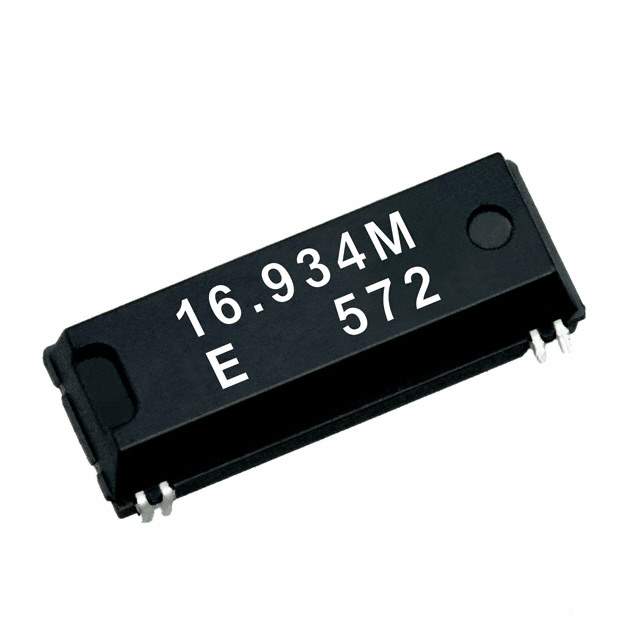

MA-406 14.31818M-CB:ROHS Real Image
Same model may have multiple batches, images only for reference.

MA-406 14.31818M-CB:ROHS

Part No MA-406 14.31818M-CB:ROHS
Manufacturer Epson Company
Catalog Crystals
Description CRYSTAL 14.31818MHZ 18PF SMD / 14.31818 MHz ±50ppm Crystal 18pF 50 Ohms 4-SOJ, 9.60mm pitch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr EPSON
Series MA-406
Package Tube
Product Status Obsolete
Type MHz Crystal
Frequency 14.31818 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±50ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SOJ, 9.60mm pitch
Dimension 0.461" L x 0.157" W (11.70mm x 4.00mm)
Height - Seated (Max) 0.146" (3.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Standard Package 250
Win Source Part Number 1074643-MA-406 14.31818M-CB:ROHS
Ultra Librarian 3D Model Ultra Librarian MA-406 14.31818M-CB:ROHS CAD Model

Description

The MA-406 is a MHz crystal component from the MA-406 series.

  • Packaging: Tube
  • Height: 0.146" (3.70mm)
  • Standard Package: 250
  • Mounting: SMD (SMT)
  • Frequency: 14.31818 MHz
  • ESR (Equivalent Series Resistance): 50 Ohms
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±50ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Package/Case: 4-SOJ, 9.60mm pitch
  • Temperature Range: -20°C ~ 70°C
  • Dimension: 0.461" L x 0.157" W (11.70mm x 4.00mm)
