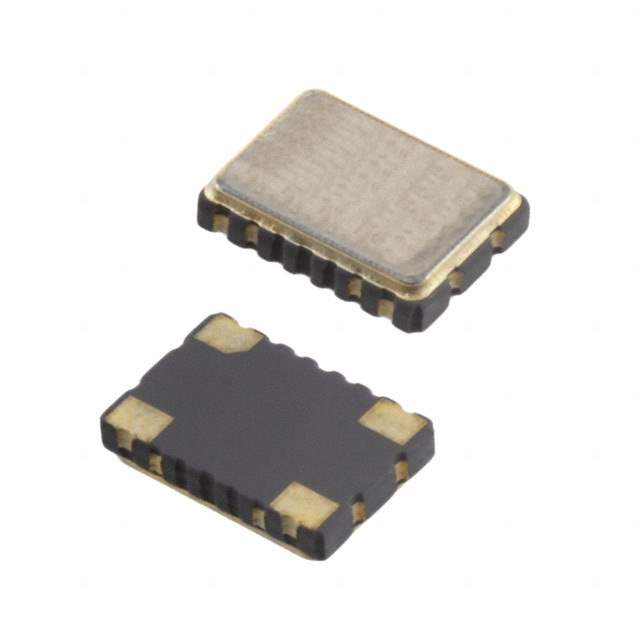

HG-2150CA 49.1520M-SVC3 Real Image
Same model may have multiple batches, images only for reference.

HG-2150CA 49.1520M-SVC3

Part No HG-2150CA 49.1520M-SVC3
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 49.1520MHZ CMOS SMD / 49.152 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series HG-2150CA
Package Tape & Reel (TR)
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 49.152 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±15ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 25mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Current - Supply (Disable) (Max) 12mA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names HG-2150CA 49.1520M-SVC3-ND,HG-2150CA49.1520M-SVC3
Standard Package 250
Win Source Part Number 1062754-HG-2150CA 49.1520M-SVC3
Ultra Librarian 3D Model Ultra Librarian HG-2150CA 49.1520M-SVC3 CAD Model

Description

The Win Source Part Number 1062754-HG-2150CA 49.1520M-SVC3 is an oscillator with a frequency of 49.152 MHz.

  • Series: HG-2150CA
  • Package: Tape & Reel (TR)
  • Height-Seated (Max): 0.059" (1.50mm)
  • Standard Package: 250
  • REACH: Unaffected
  • ECCN: EAR99
  • Current Supply (Max): 25mA
  • Current Supply (Disable) (Max): 12mA
  • Voltage Supply: 3.3V
  • Output: CMOS
  • Frequency Stability: ±15ppm
  • Absolute Pull Range (APR): -
  • Category: Crystals, Oscillators, Resonators > Oscillators
  • HTSUS: 8542.39.0001
  • Other Part Numbers: SG-211SDE 54.0000MT3HG-2150CA49.1520M-SVC3
