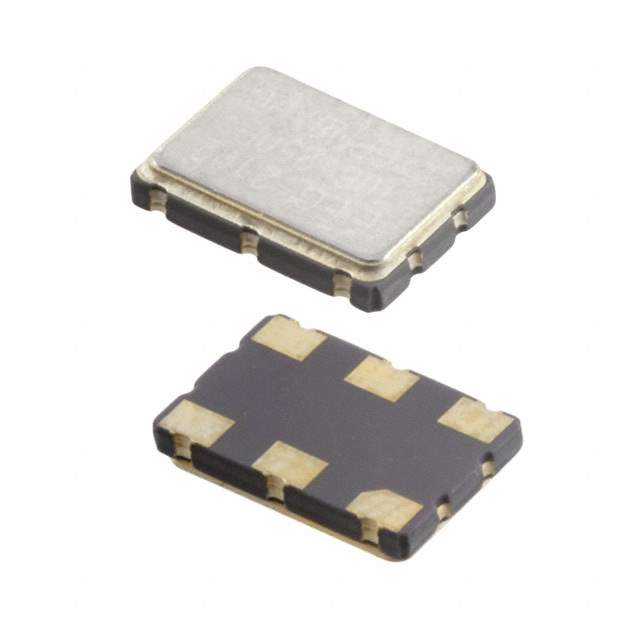

EG-2102CA 100.0000M-PHPAL3 Real Image
Same model may have multiple batches, images only for reference.

EG-2102CA 100.0000M-PHPAL3

Part No EG-2102CA 100.0000M-PHPAL3
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC SO 100.0000MHZ LVPECL / 100 MHz SO (SAW) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series EG-2102CA
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type SO (SAW)
Frequency 100 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 3.3V
Frequency Stability ±100ppm
Temperature Range - Operating 0°C ~ 70°C
Current - Supply (Max) 100mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.055" (1.40mm)
Current - Supply (Disable) (Max) 32mA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names Q3806CA00000812,SER4223CT,SER4223TR,EG-2102CA100.0000M-PHPAL3,826341,EG-2102CA 100.0000M-PHPAL3-ND,SER4223DKR,Q3806CA000008
Standard Package 250
Win Source Part Number 1056970-EG-2102CA 100.0000M-PHPAL3
Ultra Librarian 3D Model Ultra Librarian EG-2102CA 100.0000M-PHPAL3 CAD Model

Description

The EG-2102CA 100.0000M-PHPAL3 is a SAW oscillator from EPSON.

  • Frequency: 100MHz
  • Frequency Stability: ±100ppm
  • Supply Voltage: 3.3V
  • Maximum Supply Current: 100mA
  • Disable Current: 32mA
  • Package: 6-SMD, no lead
  • Height: 0.055" (1.40mm)
  • Enable/Disable Function: Yes
  • Output: LVPECL
  • Temperature Range: 0°C to 70°C
  • Alternative Parts (cross-reference): ASFL1-100.000MHZ-L-T, EG-2121CA 100.0000M-PHPAB, BS-106.250MBC-T, ECS-3951M-1000-AU-TR, ECS-LVDS25-1000-A, EG-2121CA 100.0000M-PHPAL3EG-2102CA100.0000M-PHPAL3, EG2102CA 100.0000M-PHPAL3, and EG2102CA100.0000M-PHPAL3
  • Status: Obsolete
