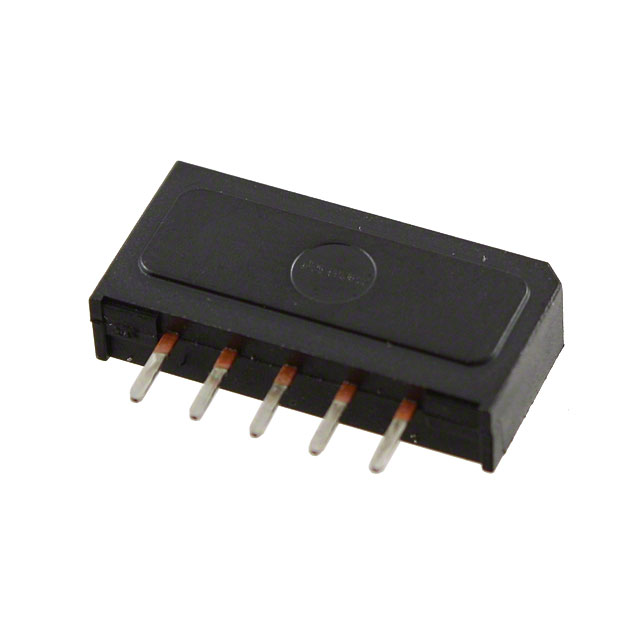

X6966M EPCOS (TDK)
Same model may have multiple batches, images only for reference.

X6966M

Part No X6966M
Manufacturer EPCOS (TDK)
Catalog SAW Filters
Description FILTER SAW BANDPASS 36.125MHZ
Datasheet
X6966M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Tube/Rail
Status Obsolete(EOL)
Frequency - Center 36.125MHz
Bandwidth 8MHz
Insertion Loss 20.3dB
Applications Digital Cable Filter
Mounting Through Hole
Height (Max) 0.343" (8.70mm)
Dimension 0.681" L x 0.154" W (17.30mm x 3.90mm)
Win Source Part Number 043768-X6966M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian X6966M CAD Model

Description

The EPCOS (TDK) 043768-X6966M is a digital cable filter with an insertion loss of 20.3dB.

  • Height: 0.343" (8.70mm)
  • Bandwidth: 8MHz
  • Frequency Center: 36.125MHz
  • Mounting: Through Hole
  • Category: Filters
  • Popularity: Medium
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Balanced
