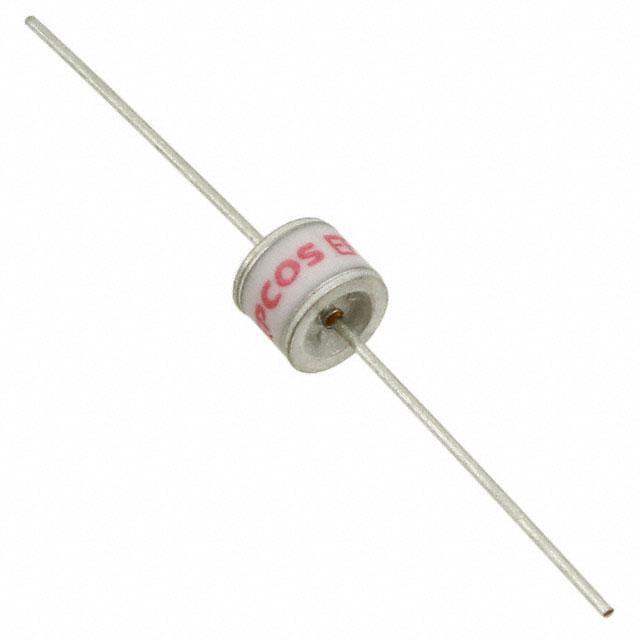

B88069X5690T502 EPCOS - TDK Electronics
Same model may have multiple batches, images only for reference.

B88069X5690T502

Part No B88069X5690T502
Manufacturer EPCOS (TDK)
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 2500V 2.5KA 2 POLE TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201098-B88069X5690T502
Manufacturer EPCOS - TDK Electronics
Category Circuit Protection -Gas Discharge Tube Arresters (GDT)
Series EF
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Voltage - DC Spark Over (Nom) 2500 V
Impulse Discharge Current (8/20µs) 2500A (2.5kA)
Tolerance ±20%
Number of Poles 2
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian B88069X5690T502 CAD Model

Description

The EF series by EPCOS - TDK Electronics is a range of gas discharge tube arresters (GDT) designed for circuit protection applications.

  • Package: Tape & reel (TR) cut tape
  • Mounting Type: Through-hole
  • Tolerance: ±20%
  • DC Spark-Over Voltage: 2500V
  • Poles: Two
  • Impulse Discharge Current: 2500A (2.5kA)
  • Product Status: Active
  • Manufacturer: EPCOS - TDK Electronics
