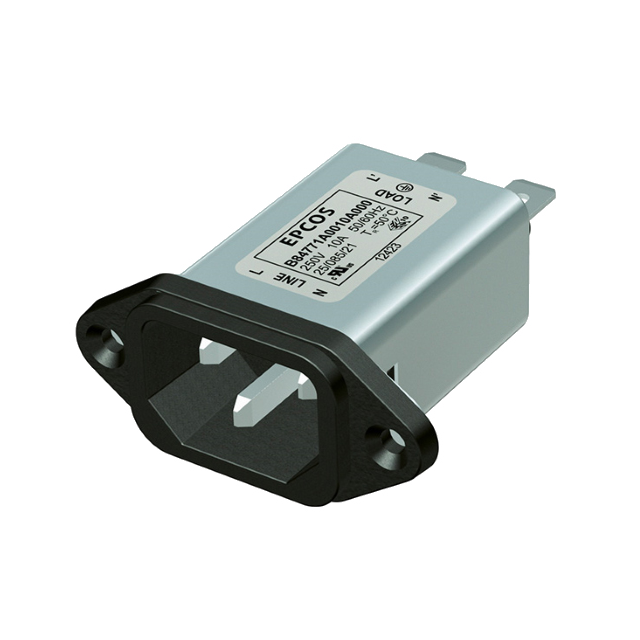

B84771A0020A000 Real Image
Same model may have multiple batches, images only for reference.

B84771A0020A000

Part No B84771A0020A000
Manufacturer EPCOS (TDK)
Catalog Power Entry Connectors - Inlets, Outlets, Modules
Description FILTER POWER LINE
Datasheet
B84771A0020A000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Connector Style IEC 320-C20
Connector Type Receptacle, Male Blades
Current Rating 20A
Voltage Rating 250VAC/DC
Nominal current IN - UL 20A
Voltage - UL 250VAC/DC
Filter Type Filtered (EMI, RFI) - Commercial
Fuse No
Number of Positions 3
Mounting Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Switch Features Bleed Resistor, Front or Rear Side Mount
Panel Cutout Dimensions Variable Size
Ingress Protection IP40
Approvals cUL, ENEC, UL
Win Source Part Number 1010864-B84771A0020A000
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B84771A0020A000 CAD Model

Description

The EPCOS (TDK) 1010864-B84771A0020A000 is a filtered (EMI, RFI) commercial connector with a connector type of receptacle, male blades.

  • Voltage Rating: 250VAC/DC
  • Current Rating: 20A
  • Ingress Protection: IP40
  • Approvals: cUL, ENEC, and UL
  • Mounting: Panel
  • Panel Cutout: Variable size
  • Fuse Holder: No
  • Switch: Bleed resistor, front or rear side mount
  • Supply and Demand Status: Balanced
