Same model may have multiple batches, images only for reference.

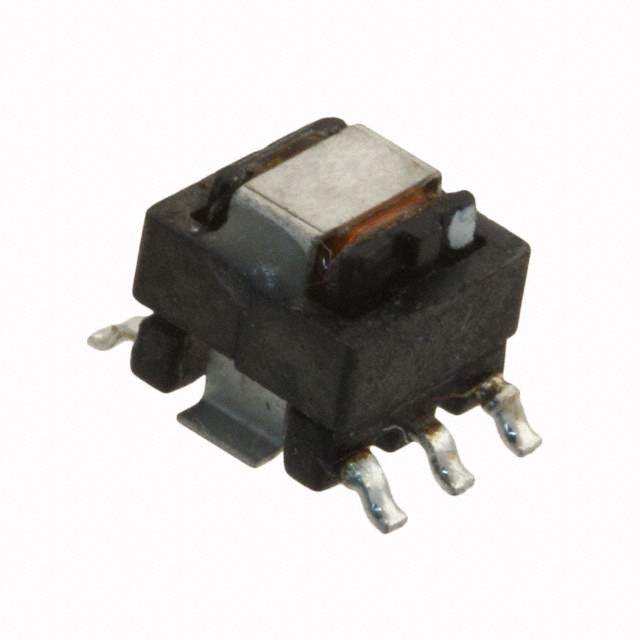

B82801B0305A125 Real Image
Same model may have multiple batches, images only for reference.

B82801B0305A125

Part No B82801B0305A125
Manufacturer EPCOS (TDK)
Catalog Current Sense Transformers
Description CURR SENSE XFMR 1:125 SMD / 1:125 Current Sense Transformer 50kHz ~ 1MHz 0.8mOhm Primary, 6.5Ohm Secondary 3 mH Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr EPCOS - TDK Electronics
Series B82801B
Package Tape & Reel
Frequency Range 50kHz ~ 1MHz
Type Invasive
Inductance 3 mH
DC Resistance (DCR) 0.8mOhm Primary, 6.5Ohm Secondary
Mounting SMD (SMT)
Dimension 0.280" L x 0.320" W (7.11mm x 8.13mm)
Height - Seated (Max) 0.200" (5.08mm)
Termination Style Gull Wing
Weight 0.014 oz (0.4 g)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 495-4049-6,B82801B 305A125,495-4049-2,495-4049-1,B82801B305A125
Standard Package 900
Win Source Part Number 1004224-B82801B0305A125
Ultra Librarian 3D Model Ultra Librarian B82801B0305A125 CAD Model

Description

The EPCOS - TDK Electronics electronic component is an invasive type with a category of Transformers>Current Sense Transformers. The series is B82801B. The termination style is gull wing with a package of tape & reel. The inductance is 3 mH. The height - seated (Max) is 0.200" (5.08mm). The standard package is 900. The mounting is SMD (SMT). The Win Source Part Number is 1004224-B82801B0305A125.
