Same model may have multiple batches, images only for reference.

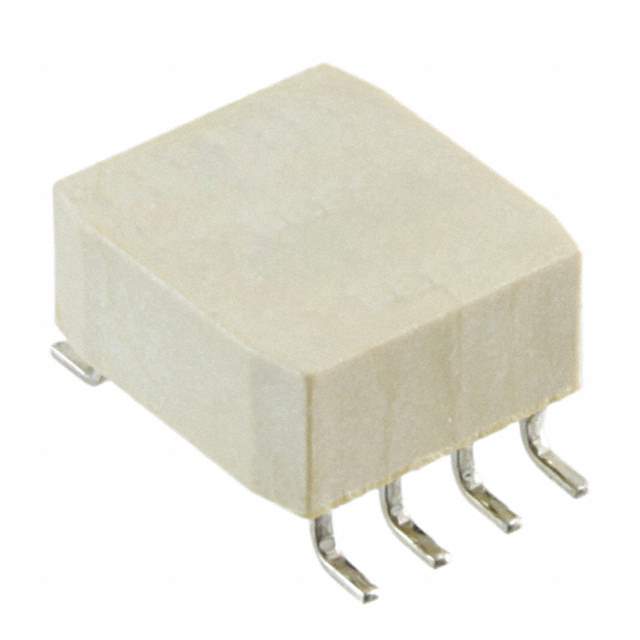

B82792C0106N365 Real Image
Same model may have multiple batches, images only for reference.

B82792C0106N365

Part No B82792C0106N365
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 10MH 500MA 2LN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 23 Weeks
Features 10 2 Line Common Mode Choke Surface Mount 500mA DCR 1.1Ohm (Typ)
Manufacturer EPCOS (TDK)
Series B82792
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Horizontal, 8 Gull Wing
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number B82792C106N365, 495-5768-6, B82792C106N365-ND, 495-5768-2, B82792C 106N365, 495-5768-1
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 912725-B82792C0106N365
Ultra Librarian 3D Model Ultra Librarian B82792C0106N365 CAD Model

Description

The EPCOS (TDK) B82792 series common mode choke is a surface mount filter designed to reduce electromagnetic interference (EMI) in electronic circuits.

  • Filtering: 2-line common mode
  • Package: Surface mount with 8 gull wing pins
  • Part Number: B82792C0106N365
  • Maximum Current Rating: 500mA
  • Typical DC Resistance: 1.1 Ohm
  • Operating Temperature Range: -40°C to 125°C
  • Package: Reel
  • Quantity per Package: 500 pieces
  • Application: Power supplies, motor drives, and other electronic devices that require EMI filtering.
