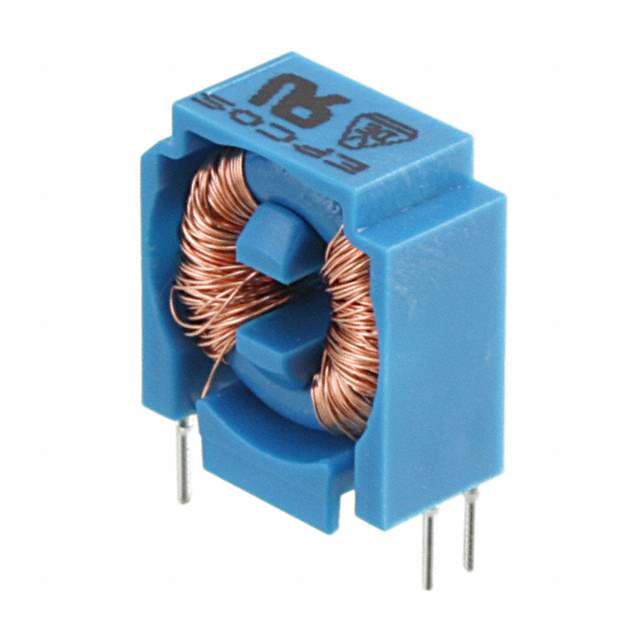

B82791H2301N1 Real Image
Same model may have multiple batches, images only for reference.

B82791H2301N1

Part No B82791H2301N1
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 30MH 300MA 2LN TH
Datasheet
B82791H2301N1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 30mH @ 10kHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 2.2 Ohm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C to 125°C
Approvals ENEC, UR, VDE
Mounting Through Hole
Height (Max) 0.693" (17.60mm)
Dimension Vertical, 4 PC Pin
Win Source Part Number 121817-B82791H2301N1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B82791H2301N1 CAD Model

Description

Product: B82791H2301N1

The B82791H2301N1 component is tailored for use in complex electronic systems requiring superior noise filtering and enhanced signal integrity.

Applications:

  • Consumer electronics EMI filtering
  • Integrated into power electronic devices
  • Adequate for automotive electronics

Features and Benefits:

  • Effective noise suppression in high-frequency ranges
  • Compact structure for versatile application
  • Compliant with industry standards

Ideal for engineers looking for reliable EMI solutions in compact formats.
