Same model may have multiple batches, images only for reference.

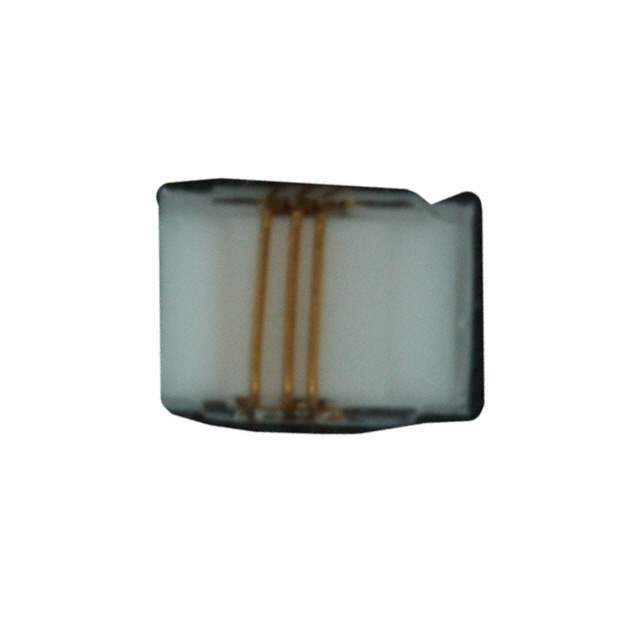

B82498F3120J000 Real Image
Same model may have multiple batches, images only for reference.

B82498F3120J000

Part No B82498F3120J000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 12NH 700MA 90 MOHM SMD
Datasheet
B82498F3120J000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ceramic
Inductance 12nH
Tolerance ±5%
Current Rating 700mA
DC Resistance (DCR) 90 mOhm Max
Q @ Freq 50 @ 500MHz
Frequency - Self Resonant 4GHz
Ratings AEC-Q200
Temperature Range - Operating -55°C to 125°C
Frequency - Test 250MHz
Mounting SMD (SMT)
Case / Package 0907 (2317 Metric)
Height - Seated (Max) 0.055" (1.40mm)
Win Source Part Number 1021774-B82498F3120J000
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B82498F3120J000 CAD Model

Description

The EPCOS (TDK) Inductor, Coil, Choke with a Win Source Part Number of 1021774-B82498F3120J000 has a packaging of Reel-TR and is wirewound.

  • Current Rating: 700mA
  • Inductance: 12nH
  • Height-Seated (max): 0.055" (1.40mm)
  • Mounted using: SMD (SMT)
  • Tolerance: ±5%
  • DC Resistance (DCR): 90 mOhm Max
  • Temperature Range: -55°C to 125°C
  • Supply and Demand Status: sufficient
