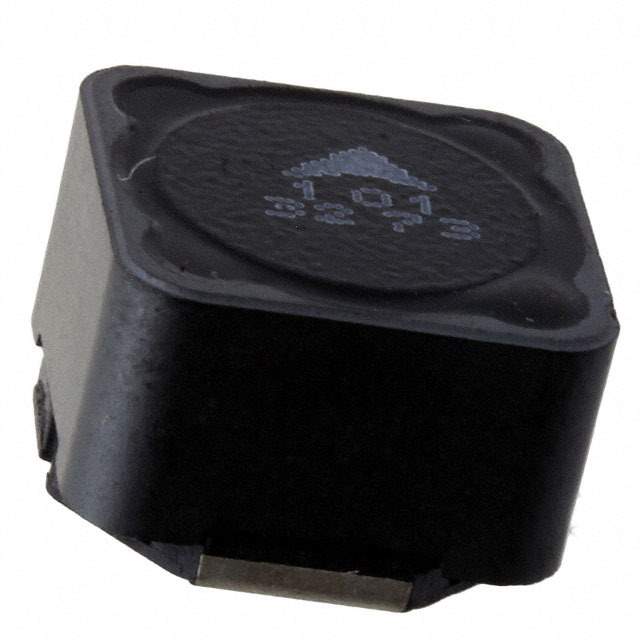

B82477R4223M100 Real Image
Same model may have multiple batches, images only for reference.

B82477R4223M100

Part No B82477R4223M100
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 22UH 4.45A 32 MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 4.45 A 32mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer EPCOS - TDK Electronics
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 4.45 A
Current - Saturation (Isat) 6.1A
Shielding Shielded
DC Resistance (DCR) 32mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.335" (8.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number B82477R4223M100-ND,495-75555-2,495-75555-1,495-75555-6
Standard Package 350
Win Source Part Number 1328489-B82477R4223M100
Ultra Librarian 3D Model Ultra Librarian B82477R4223M100 CAD Model

Description

The B82477R4223M100 is a drum core, wirewound inductor from EPCOS - TDK Electronics that is shielded and has a tolerance of ±20%.

  • Inductance: 22 µH
  • DC Resistance (DCR): 32mOhm Max
  • Operating Temperature: -55°C ~ 150°C
  • Mounting Type: surface mount
  • Current Rating: 4.45 A
  • Inductance Frequency Test: 100 kHz
  • AEC-Q200 Rated: Yes
  • RoHS3 Compliant: Yes
  • Applications: DC/DC converters, automotive electronics, and LED drivers
