Same model may have multiple batches, images only for reference.

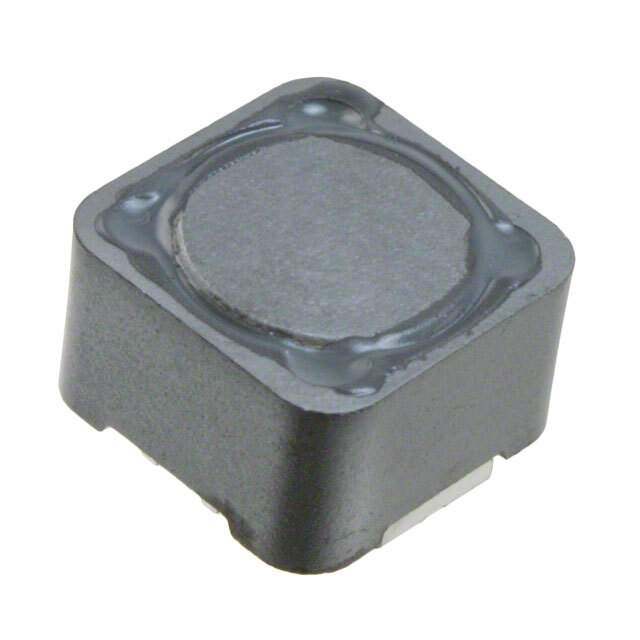

B82477G4392M000 Real Image
Same model may have multiple batches, images only for reference.

B82477G4392M000

Part No B82477G4392M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 3.9UH 7.5A 12.5 MOHM
Datasheet
B82477G4392M000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 3.9μH
Tolerance ±20%
Current Rating 7.5A
Current - Saturation 9.5A
DC Resistance (DCR) 12.5 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.236" (6.00mm)
Win Source Part Number 1021761-B82477G4392M000
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B82477G4392M000 CAD Model

Description

The B82477G4392M000 is a wirewound inductor from EPCOS (TDK).

  • Inductance: 3.9μH
  • Current Rating: 7.5A
  • Maximum Height: 0.236 inches
  • Mounting Type: Surface Mount
  • Tolerance: +/- 20%
  • Temperature Range: -55 degrees Celsius to 125 degrees Celsius
