Same model may have multiple batches, images only for reference.

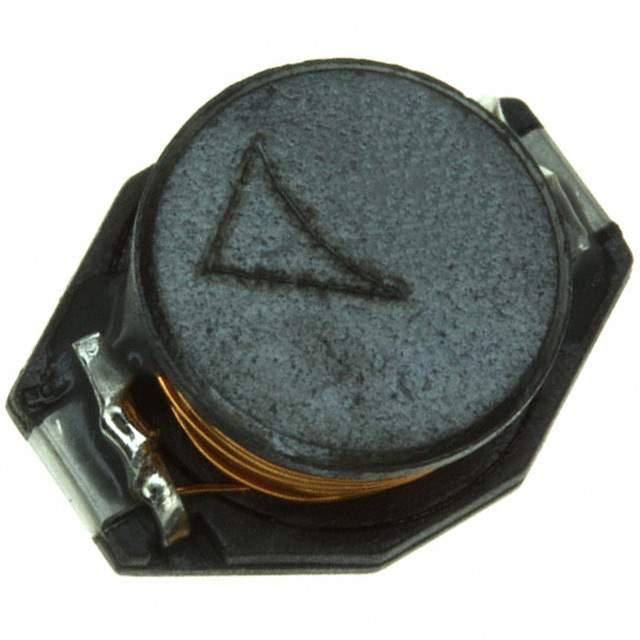

B82476A1224M000 Real Image
Same model may have multiple batches, images only for reference.

B82476A1224M000

Part No B82476A1224M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description SMT power inductors
Datasheet
B82476A1224M000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Series B82476A1
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 220μH
Tolerance ±20%
Current Rating 800mA
Current - Saturation 800mA
Shielding Unshielded
DC Resistance (DCR) 530 mOhm Max
Operating Temperature Range -55°C ~ 150°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.510" L x 0.370" W (12.95mm x 9.40mm)
Height - Seated (Maximum) 0.200" (5.08mm)
Win Source Part Number 1150892-B82476A1224M000
Manufacturer Homepage www.epcos.com
Popularity Medium
Supply and Demand Status Limited
Family Name B82476A1
Introduction Date March 31, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian B82476A1224M000 CAD Model

Description

The B82476A1 series from EPCOS (TDK) is a wirewound type inductor with a nonstandard package.

  • Inductance: 220μH
  • Current Rating: 800mA
  • Core Material: Ferrite
  • Tolerance: ±20%
  • Operating Temperature: -55°C to 150°C
  • Applications: Inductors, coils, and chokes
  • Size: 0.510" L x 0.370" W (12.95mm x 9.40mm)
  • Mounting: SMD
  • Packaging: Reel
  • DC Resistance (DCR): 530 mOhm Max
  • Halogen-Free: Compliant
  • Estimated EOL Date: 2024
