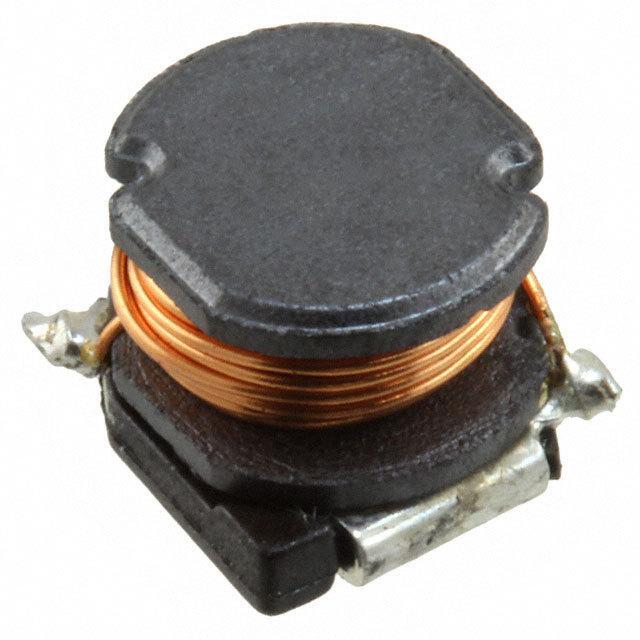

B82471A1473M000 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B82471A1473M000

Part No B82471A1473M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 47UH 720MA 370 MOHM / Inductor Power Wirewound 47uH 20% 100KHz Ferrite 0.72A 0.37Ohm DCR Automotive T/R
Datasheet
B82471A1473M000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Series B82471A1
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±20%
Current Rating 720mA
Current - Saturation 850mA
Shielding Unshielded
DC Resistance (DCR) 370 mOhm Max
Operating Temperature Range -55°C ~ 150°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.240" L x 0.220" W (6.10mm x 5.60mm)
Height - Seated (Maximum) 0.193" (4.90mm)
Win Source Part Number 769576-B82471A1473M000
Popularity Medium
Supply and Demand Status Limited
Family Name B82471A1
Introduction Date April 09, 2008
ECCN EAR99
Country of Origin China, Germany, Hungary
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian B82471A1473M000 CAD Model

Description

The B82471A1 series inductor is a wirewound type that is manufactured by EPCOS (TDK).

  • Package: Nonstandard
  • Operating Temperature Range: -55°C to 150°C
  • Inductance: 47μH
  • Current Rating: 720mA
  • Shielding: Unshielded
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Mounting: Surface Mount (SMD)
  • DC Resistance: 370 mOhm Max
  • Dimension: 0.240" L x 0.220" W (6.10mm x 5.60mm)
  • Height: 0.193" (4.90mm)
  • Compliance: Halogen-free
  • Popularity: Medium
  • Supply and Demand Status: Limited
