Same model may have multiple batches, images only for reference.

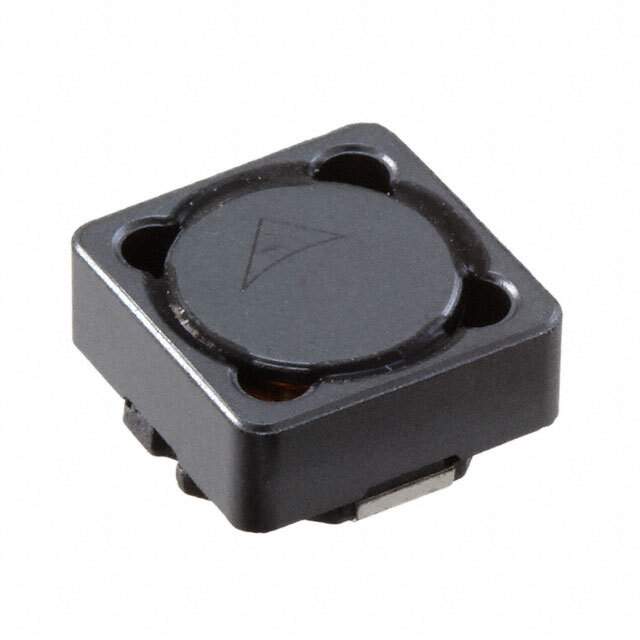

B82464P4103M000 Real Image
Same model may have multiple batches, images only for reference.

B82464P4103M000

Part No B82464P4103M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 10UH 3.4A 30 MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 3.4 A 30mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS - TDK Electronics
Series B82464P4
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 3.4 A
Current - Saturation (Isat) 3.5A
Shielding Shielded
DC Resistance (DCR) 30mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.409" L x 0.409" W (10.40mm x 10.40mm)
Height - Seated (Max) 0.189" (4.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 495-5663-2,495-5663-6,B82464P4103M-ND,B82464P4103M,495-5663-1
Standard Package 750
Win Source Part Number 1158710-B82464P4103M000
Ultra Librarian 3D Model Ultra Librarian B82464P4103M000 CAD Model

Description

The B82464P4103M000 is a fixed inductor from EPCOS that has an inductance of 10 µH and a current rating of 3.4 A.

  • Inductance: 10 µH
  • Current Rating: 3.4 A
  • Tolerance: ±20%
  • DCR: 30mOhm max
  • Package Type: Tape and reel
  • Mounting: SMD (SMT)
  • Size: 0.409" L x 0.409" W x 0.189" H
  • Shielded: Yes
  • Core Material: Ferrite
  • AEC-Q200: Yes
  • Temperature Range: -55°C to 150°C
  • EOL Date: Not Available
