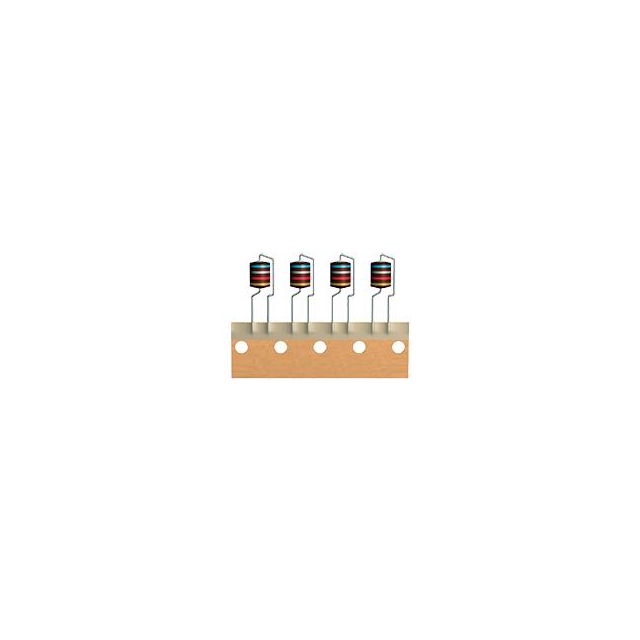

Same model may have multiple batches, images only for reference.
B82144B1226J000 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82144B1226J000

Part No B82144B1226J000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description 22 mH Unshielded Drum Core, Wirewound Inductor 40 mA 120Ohm Max Radial, Vertical Cylinder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr EPCOS - TDK Electronics
Series LBC
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 mH
Tolerance ±5%
Current Rating (Amps) 40 mA
Shielding Unshielded
DC Resistance (DCR) 120Ohm Max
Q @ Freq 50 @ 79.6kHz
Frequency - Self Resonant 400kHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Size / Dimension 0.256" Dia (6.50mm)
Height - Seated (Max) 0.571" (14.50mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1488740-B82144B1226J000
Ultra Librarian 3D Model Ultra Librarian B82144B1226J000 CAD Model
